E1X | Industrial Cable Gland For Braid & Steel Tape Armoured Cables

Double Seal Industrial Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Displacement type inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow
• Deluge protection option
• -60°C to +130°C
• EMC tested

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
GOST R Certificate POCC.GB.HA46.H00140
Marine Approvals LRS: 01/00171 , ABS: 16-LD1472056-PDA
Ingress Protection Rating ** IP66 as standard (IP67, IP68 available upon request)
Cable Gland Material Brass, Electroless Nickel Plated Brass, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Wire Braid Armour, Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire
Armour (PWA), Steel Tape Armour (STA), Aluminium Strip Armour (e.g. ASA)
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique CMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Seal
Sealing Area(s) Cable Inner Bedding & Outer Cable Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats
'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Ozs)
StandardOption
MetricThread Length (Metric) 'E'NPTThread Length
(NPT) 'E'
NPTMinMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20s16M200.391/2'0.783/4'0.120.340.240.520.010.040.941.042.8520S16E1X1RAPVC045.75
20SM200.391/2'0.783/4'0.240.460.370.630.010.040.941.042.7620SE1X1RAPVC045.29
20M200.391/2'0.783/4'0.260.550.490.820.020.041.201.322.8720E1X1RAPVC067.41
25SM250.393/4'0.801'0.440.780.550.870.020.051.481.633.5025SE1X1RAPVC0911.64
25M250.393/4'0.801'0.440.780.721.030.020.051.481.633.5025E1X1RAPVC0911.64
32M320.391'0.981 1/4'0.671.030.931.330.020.051.811.993.3932E1X1RAPVC1115.17
40M400.591 1/4'1.011 1/2'0.871.261.101.590.020.062.172.383.5440E1X1RAPVC1521.87
50SM500.591 1/2'1.032'1.161.501.391.840.020.062.362.603.5850SE1X1RAPVC1826.46
50M500.592'1.062 1/2'1.401.731.592.090.020.062.763.043.7450E1X1RAPVC2133.51
63SM630.592'1.062 1/2'1.581.961.802.340.020.062.953.254.0263SE1X1RAPVC2347.27
63M630.592 1/2'1.573'1.862.202.152.590.020.063.153.464.0963E1X1RAPVC2547.27
75SM750.592 1/2'1.573'2.082.442.322.830.020.063.543.904.5375SE1X1RAPVC2874.43
75M750.593'1.633 1/2'2.332.672.633.090.020.063.944.334.6175E1X1RAPVC3085.36
90M900.943 1/2'1.694'2.623.093.003.560.030.064.504.945.7990E1X1RAPVC32148.5
100M1000.944'1.735'2.993.583.393.990.030.064.845.335.51100E1X1RALSF33156.97
115M1150.944'1.735'3.393.854.004.340.030.065.255.786.38115E1X1RALSF34218.35
130M1300.945'1.846'3.824.524.344.850.030.066.006.606.85130E1X1RALSF35294.19
Dimensions displayed in inches unless otherwise stated
Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats
'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
StandardOption
MetricThread Length (Metric) 'E'NPTThread Length
(NPT) 'E'
NPTMinMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20s16M2010.01/2'19.93/4'3.18.66.113.10.31.024.026.472.520S16E1X1RAPVC040.16
20SM2010.01/2'19.93/4'6.111.69.515.90.31.024.026.470.020SE1X1RAPVC040.15
20M2010.01/2'19.93/4'6.513.912.520.90.41.030.533.673.020E1X1RAPVC060.21
25SM2510.03/4'20.21'11.119.914.022.00.41.237.541.389.025SE1X1RAPVC090.33
25M2510.03/4'20.21'11.119.918.226.20.41.237.541.389.025E1X1RAPVC090.33
32M3210.01'25.01 1/4'17.026.223.733.90.41.246.050.686.032E1X1RAPVC110.43
40M4015.01 1/4'25.61 1/2'22.032.127.940.40.41.655.060.590.040E1X1RAPVC150.62
50SM5015.01 1/2'26.12'29.538.135.246.70.41.660.066.091.050SE1X1RAPVC180.75
50M5015.02'26.92 1/2'35.644.040.453.00.61.670.177.195.050E1X1RAPVC210.95
63SM6315.02'26.92 1/2'40.149.945.659.40.61.675.082.5102.063SE1X1RAPVC231.34
63M6315.02 1/2'39.93'47.255.954.665.80.61.680.088.0104.063E1X1RAPVC251.34
75SM7515.02 1/2'39.93'52.861.959.072.00.61.690.099.0115.075SE1X1RAPVC282.11
75M7515.03'41.53 1/2'59.167.966.778.40.61.6100.0110.0117.075E1X1RAPVC302.42
90M9024.03 1/2'42.84'66.678.676.290.30.81.6114.3125.4147.090E1X1RAPVC324.21
100M10024.04'44.05'76.090.986.1101.40.81.6123.0135.3140.0100E1X1RALSF334.45
115M11524.04'44.05'86.097.9101.5110.20.81.6133.4146.7162.0115E1X1RALSF346.19
130M13024.05'46.86'97.0114.9110.2123.20.81.6152.4167.6174.0130E1X1RALSF358.34
Dimensions displayed in millimeters unless otherwise stated

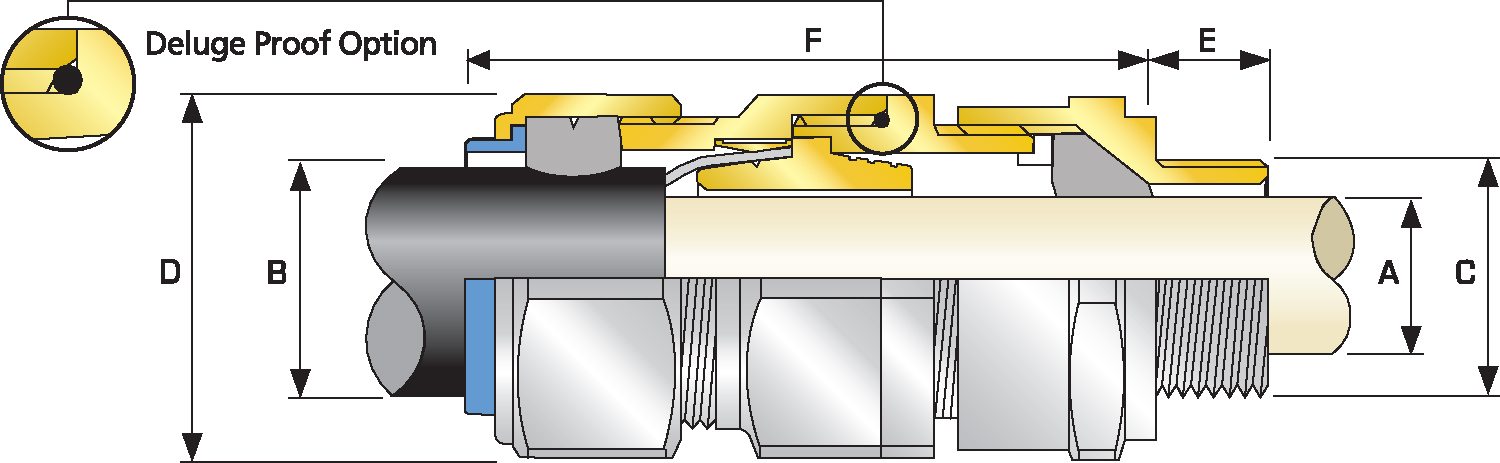

Technical Illustration

Additional Information

Industry Standard Cable Gland Designations

Cable glands may be designed, tested and manufactured to various standards around the world, but as a long established UK-based manufacturer, part of CMP’s history includes close participation in the development of British Standards for these products.

Read more

CMP Ingress Protection Testing

Some CMP cable gland types have been tested to IP66, whilst other types have been tested to IP66, IP67 & IP68, to an equivalent depth of up to 60 metres for a duration of two weeks. For manufacturers to claim an IP68 protection level it is important that they include both the depth of water and time duration of the test conducted; otherwise the rating would be incomplete and meaningless.

Read more

Cable Gland Sizing – Enlarged Cable Diameters

The CMP combination gland concept utilises the forward portion of one cable gland size andthe rear portion of the next cable gland size up (larger). This enables cable gland selection for braided or armoured cables where the difference between the inner bedding and outer sheath cannot be accommodated with a standard cable gland size. Combination cable glands for braided & armoured cables are available for both industrial and explosive atmospheres cable gland types with both inner and outer seals.

Read more
