PX784REX | 45 Degree RapidEx Barrier Union Available in brass, nickel plated brass, aluminium, stainless steel

45° Union, Globally Approved, Explosive Atmosphere Barrier Cable / Conduit Accessory

  • RapidEx liquid pour sealing system
    • Enhances reliability, reduces risk
    • Reduces man hours
    • Reduces cost
  • Allows the connection of conduit or glands to equipment
  • Suitable for rigid or flexible conduit
  • Integral coupling eliminates the need to rotate the conduit
  • General Purpose / industrial version available
  • Equipment interface ‘O’ ring seal available
  • -60°C to +85°C
  • Globally marked, IECEx, ATEX & cCSAus

Note: Male-to-Male or Female-to-Female thread option available.

Available with an equipment interface ‘O’ ring seal. For such options please add the suffix letter “R” after the type number in the ordering reference above, e.g. PX784REXRDM2M2.

For epoxy compound version please remove “REX” from ordering reference.

If 2 separate enclosures are required to be connected together please contact CMP Products.

Patent granted: DE 2287986, ES 2287986, FR 2287986, IT 2287986, NL 2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, CA 2771713, GB 2485114, MY 153846, SG 178839, US 8872027, US 9484133, US 9774178

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate CML 18ATEX1329U
Code of Protection II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da IP6X
IM2 Ex db I Mb / Ex eb I Mb
Compliance Standards EN 60079-0,1,7,31
IECEx Certificate IECEx CML 18.0186U
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex db I Mb, Ex eb I Mb, Ex ta IIIC Da IP6X
Compliance Standards IEC 60079-0,1,7,31
cCSAus Certificate 1055233
Code of Protection Class I, Div 1 & 2, Groups A,B,C,D ; Enclosure type 4X : Class I, Zone 1, AEx de II ; Ex de II
Compliance Standards C22.2 No.0,0.5,30,94, CAN/CSA E60079-0,1,7, CAN/CSA E61241-1, UL Std 50, 1203, UL 60079-0,1,7
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.AA87.B.00487
INMETRO Approval TÜV 12.1334U
CCC Certificate 2020322313003177
RETIE Approval 03866
UkrSEPRO CU 19.0371X
CCOE / PESO (India) Certificate P444949
SANS MS-XPL21804 21.0013U
Marine Approvals LRS: 01/00173
Ingress Protection Rating ** IP66 when fitted with a CMP ‘O’ ring or Entry Thread Seal**
Available Materials Brass (standard), Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Note: ** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

METRICNPT
Ordering Reference
(Brass, Metric)
Male Forward Thread Size 'A'Minimum
Thread Length 'E'
Female Rear Thread Size 'B'Ordering Reference
(Brass, NPT)
Male Forward NPT Thread Size 'A'Minimum
NPT Thread Length 'E'
(in)
Female Rear Thread Size 'B'Diameter over Cores "C"Max. number of CoresMax Protrusion Length 'D'Max Overhang Length
'F'
Across
Flats Hex
'G'
Across
Corners Ø
'G'
Installation
Torque (Nm)
PX784REXDM2M2M20 X 1.50.59M20 X 1.5PX784REXDT1T1½"0.79½"0.50212.392.201.811.997
PX784REXDM3M3M25 X 1.50.59M25 X 1.5PX784REXDT2T2¾"0.80¾"0.69302.592.411.972.1710
PX784REXDM4M4M32 X 1.50.59M32 X 1.5PX784REXDT3T31"0.981"0.93502.742.762.362.6015
PX784REXDM5M5M40 X 1.50.59M40 X 1.5PX784REXDT4T41¼"1.011¼"1.18592.953.012.562.8125
PX784REXDM6M6M50 X 1.50.59M50 X 1.5PX784REXDT5T51½"1.031½"1.611153.683.462.953.2530
PX784REXDM7M7M63 X 1.50.59M63 X 1.5PX784REXDT6T62"1.062"2.111154.044.073.553.9145
Dimensions displayed in inches unless otherwise stated
METRICNPT
Ordering Reference
(Brass, Metric)
Male Forward Thread Size 'A'Minimum
Thread Length 'E'
Female Rear Thread Size 'B'Ordering Reference
(Brass, NPT)
Male Forward NPT Thread Size 'A'Minimum
NPT Thread Length 'E'
(in)
Female Rear Thread Size 'B'Diameter over Cores "C"Max. number of CoresMax Protrusion Length 'D'Max Overhang Length
'F'
Across
Flats Hex
'G'
Across
Corners Ø
'G'
Installation
Torque (Nm)
PX784REXDM2M2M20 X 1.515.0M20 X 1.5PX784REXDT1T1½"0.79½"12.62160.655.846.050.67
PX784REXDM3M3M25 X 1.515.0M25 X 1.5PX784REXDT2T2¾"0.80¾"17.53065.961.250.055.010
PX784REXDM4M4M32 X 1.515.0M32 X 1.5PX784REXDT3T31"0.981"23.65069.570.260.066.015
PX784REXDM5M5M40 X 1.515.0M40 X 1.5PX784REXDT4T41¼"1.011¼"30.05974.976.465.071.525
PX784REXDM6M6M50 X 1.515.0M50 X 1.5PX784REXDT5T51½"1.031½"41.011593.588.075.082.530
PX784REXDM7M7M63 X 1.515.0M63 X 1.5PX784REXDT6T62"1.062"53.7115102.7103.490.299.245
Dimensions displayed in millimeters unless otherwise stated

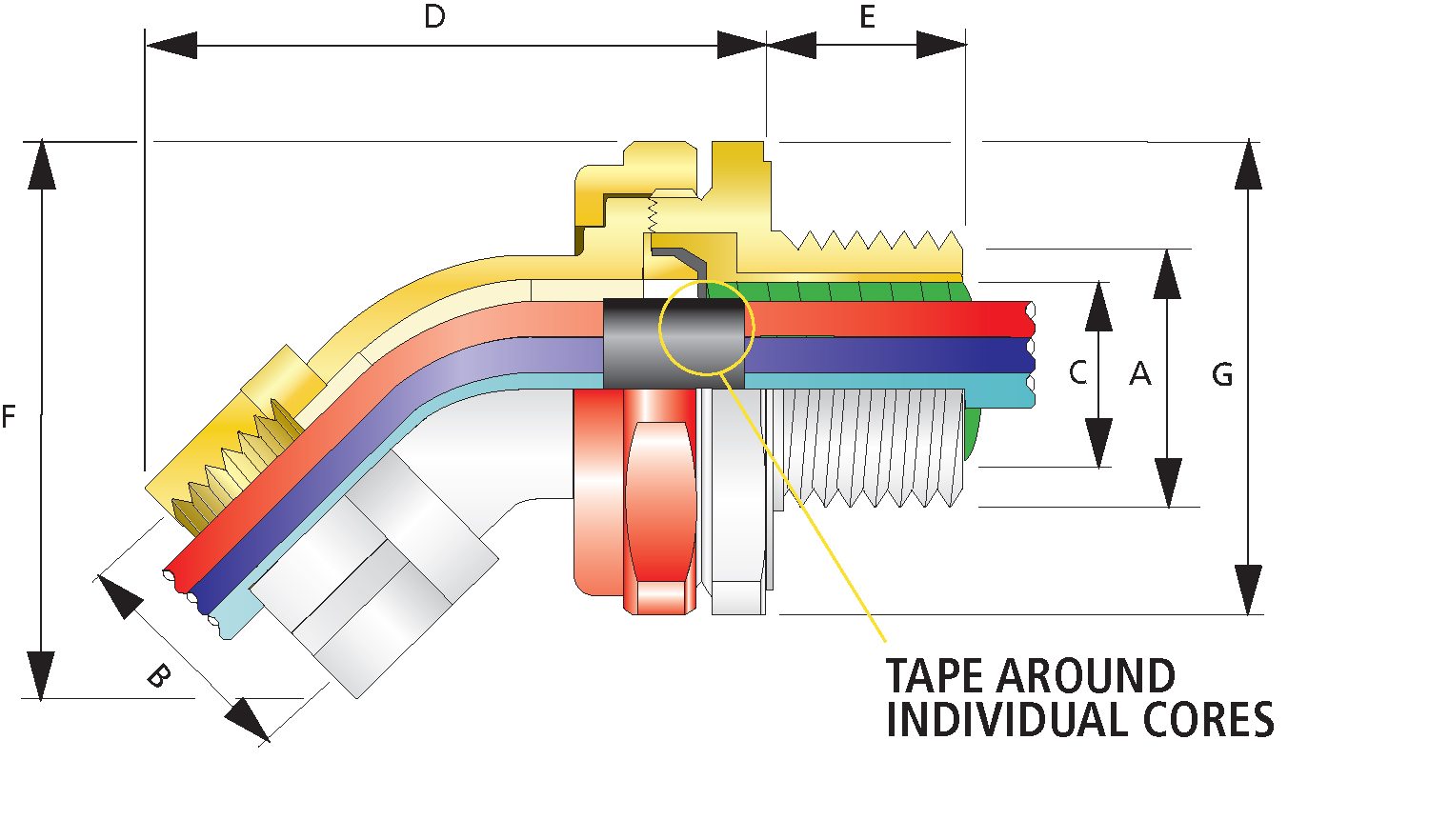

Technical Illustration

Additional Information

Terminating Co-axial Cables with Braid Screen into Flameproof Type ‘d’ (Ex d) Enclosures

CMP Products has considerable experience of terminating co-axial cables into Flameproof type ‘d (Ex d) enclosures using its range of barrier type cable glands. Customers who were unsure as to the best way forward have consulted with CMP for advice and to share their experiences on the subject. The following information is provided to assist CMP Products customers in ways to overcome what can otherwise be a rather challenging subject.

Read more

Terminating Cables with Optical Fibre content into Flameproof Type ‘d’ (Ex d) Enclosures

Fibre optic cables are used increasingly throughout industrial plants and projects for a variety of applications involving the running of business systems, data transfer, internet access, plant security and other day to day operational duties. Although IEC 60079-28 covering ‘Explosive atmospheres - Part 28: Protection of equipment and transmission systems using optical radiation’ sets out the possible means of equipment protection to ensure safety, it lacks advice on how to terminate and seal cables with optical fibre content in explosive atmospheres.

Read more

Opposition to Clause 10.6.2 & Annex E of IEC 60079-14:2013

CMP is not aware of any evidence of specific testing to prove that cable length is relevant in any way. A range of tests conducted by CMP on a selection of compact cables passed the Annex E test criteria (using a 0.5 metre cable length), and also passed the non-transmission of flame testing according to IEC 60079-1; but the same cables failed relatively low pressure gas migration testing even with a much longer cable length.

Read more
