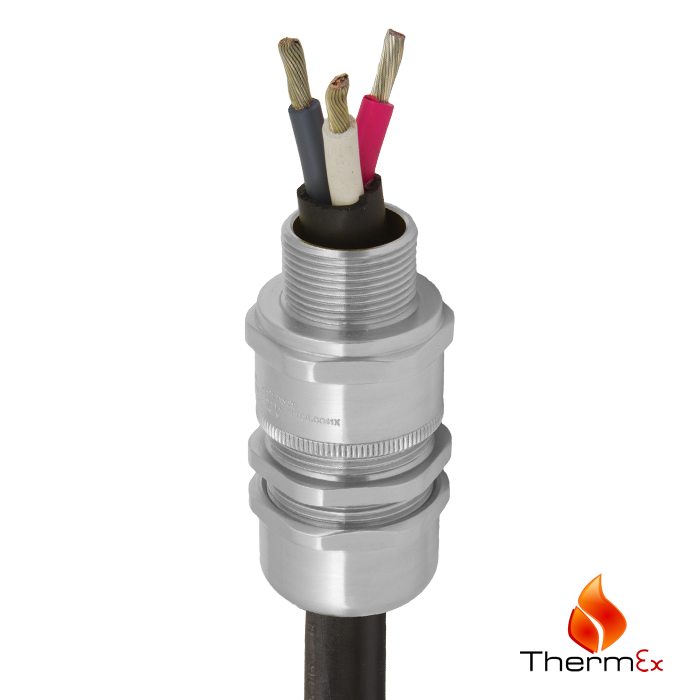

SS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland For all types of Unarmoured & Braid Armour Cables
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
Double Seal, Globally Approved, Explosive Atmosphere Cable Gland
- Provides double seal on outer sheath or single on outer & inner
- Direct & remote installation
- Superior levels of cable retention
- Displacement type flameproof seals
- Deluge protected
- -60°C to +130°C
- Ex e only version available
- Globally marked, IECEx, ATEX & CSA
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class B |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| ATEX Certificate | CML 18ATEX1322X, CML 18ATEX4314X |
| UKEX Certificate | "CML 21UKEX1256X,CML 21UKEX4257X" |
| Code of Protection | II 2G, II 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da II 3G Ex nR IIC Gc, IM2 Ex db I Mb, Ex eb I Mb |
| Compliance Standards | EN 60079-0,1,7,15,31 |
| IECEx Certificate | IECEx CML 18.0178X |
| Code of Protection | Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb, Ex eb I Mb |
| Compliance Standards | IEC 60079-0,1,7,15,31 |
| CSA Certificate | 1211841 |
| Code of Protection | Ex d IIC, Ex e II, Ex nR II, Enclosure Type 4x |
| Compliance Standards | C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,1,7, 15 |
| EAC Certificate | C-GB.A07.B.04596/22 |
| CCC Certificate | 2020322313002869 |
| CCOE / PESO (India) Certificate | Ex d: P548696, Ex e: P533772 Ex nR: P548695 |
| KCS Certificate | 19 – AV4BO – 256X – Size 16-32 19 – AV4BO – 257X – Size 40-63 19 – AV4BO – 258X – Size 75S-115 19 – AV4BO – 259X – Size 130 |
| INMETRO Approval | TÜV 12.0879X |
| RETIE Approval | EL-CS-230200 |
| UkrSEPRO | CU 19.0371X |
| Marine Approvals | LRS: 01/00172 (E3), DNV: TAE00000Y,ABS: 25-0285992-PDA - Hazardous Cable Glands, BV: 43180/A1BV |
| SANS | MS-XPL21804 21.0007X |
| Ingress Protection Rating ** | IP66, IP67 & IP68 |
| Cable Gland Material | Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium |
| Seal Material | CMP SOLO LSF Halogen Free Thermoset Elastomer |
| Cable Type | Unarmoured & Braided |
| Sealing Technique | CMP Unique Displacement Seal Concept |
| Sealing Area(s) | Cable Inner Bedding & Outer Cable Sheath, Double Seal on Cable Outer Sheath |
| Optional Accessories | Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs |
| Optional Installation Tools | Spanners |
| ECAS Certificate | 24-03-106290/E24-03-110155/NB0007 |
Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request
Certificates
Product Selection Table
Click here to view how to order
| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter 'A' | Overall Cable Diameter 'B' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Ozs) |
||||||||
| Standard | Option | ||||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 0.59 | ½' | 0.78 | ¾" | 0.13 | 0.34 | 0.13 | 0.34 | 0.94 | 1.04 | 1.93 | 20S16 | SS2K | 1RA | PVC04 | 4.94 |
| 20S | M20 | 0.59 | ½' | 0.78 | ¾" | 0.24 | 0.46 | 0.24 | 0.46 | 0.94 | 1.04 | 1.93 | 20S | SS2K | 1RA | PVC04 | 4.59 |
| 20 | M20 | 0.59 | ½' | 0.78 | ¾" | 0.26 | 0.55 | 0.26 | 0.55 | 1.06 | 1.17 | 2.13 | 20 | SS2K | 1RA | PVC05 | 5.64 |
| 25 | M25 | 0.59 | ¾' | 0.80 | 1" | 0.44 | 0.79 | 0.44 | 0.79 | 1.42 | 1.56 | 2.60 | 25 | SS2K | 1RA | PVC09 | 10.58 |
| 32 | M32 | 0.59 | 1' | 0.98 | 1 ¼" | 0.67 | 1.04 | 0.67 | 1.04 | 1.61 | 1.78 | 2.64 | 32 | SS2K | 1RA | PVC10 | 12.35 |
| 40 | M40 | 0.59 | 1 ¼' | 1.01 | 1 ½" | 0.93 | 1.26 | 0.93 | 1.26 | 1.97 | 2.17 | 2.76 | 40 | SS2K | 1RA | PVC13 | 17.64 |
| 50S | M50 | 0.59 | 1 ½' | 1.03 | 2" | 1.22 | 1.50 | 1.22 | 1.50 | 2.17 | 2.38 | 2.56 | 50S | SS2K | 1RA | PVC15 | 19.75 |
| 50 | M50 | 0.59 | 2' | 1.06 | 2 ½" | 1.40 | 1.73 | 1.40 | 1.73 | 2.36 | 2.60 | 2.76 | 50 | SS2K | 1RA | PVC18 | 20.81 |
| 63S | M63 | 0.59 | 2' | 1.06 | 2 ½" | 1.63 | 1.96 | 1.63 | 1.96 | 2.78 | 3.06 | 2.76 | 63S | SS2K | 1RA | PVC21 | 31.39 |
| 63 | M63 | 0.59 | 2 ½' | 1.57 | 3" | 1.86 | 2.20 | 1.86 | 2.20 | 2.95 | 3.25 | 2.80 | 63 | SS2K | 1RA | PVC23 | 29.98 |
| 75S | M75 | 0.59 | 2 ½' | 1.57 | 3" | 2.13 | 2.44 | 2.13 | 2.44 | 3.15 | 3.46 | 2.76 | 75S | SS2K | 1RA | PVC25 | 35.98 |
| 75 | M75 | 0.59 | 3' | 1.63 | 3 ½" | 2.41 | 2.67 | 2.41 | 2.67 | 3.31 | 3.64 | 2.95 | 75 | SS2K | 1RA | PVC26 | 34.92 |
| 90 | M90 | 0.94 | 3 ½' | 1.69 | 4" | 2.62 | 3.13 | 2.62 | 3.13 | 4.25 | 4.68 | 4.45 | 90 | SS2K | 1RA | PVC31 | 105.47 |
| 100 | M100 | 0.94 | 3 ½' | 1.69 | 4" | 2.99 | 3.58 | 2.99 | 3.58 | 4.84 | 5.28 | 4.17 | 100 | SS2K | 1RA | LSF33 | 119.58 |
| 115 | M115 | 0.94 | 4" | 1.73 | 5" | 3.39 | 3.85 | 3.39 | 3.85 | 5.25 | 5.78 | 5.04 | 115 | SS2K | 1RA | LSF34 | 187.66 |
| 130 | M130 | 0.94 | 5" | 1.84 | - | 3.82 | 4.52 | 3.82 | 4.52 | 6.00 | 6.60 | 5.08 | 130 | SS2K | 1RA | LSF35 | 223.99 |
| Dimensions displayed in inches unless otherwise stated | |||||||||||||||||
| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter 'A' | Overall Cable Diameter 'B' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) |
||||||||
| Standard | Option | ||||||||||||||||
| Metric | Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 15.0 | ½' | 19.9 | ¾" | 3.2 | 8.6 | 3.2 | 8.6 | 24.0 | 26.4 | 49.0 | 20S16 | SS2K | 1RA | PVC04 | 0.14 |
| 20S | M20 | 15.0 | ½' | 19.9 | ¾" | 6.1 | 11.7 | 6.1 | 11.7 | 24.0 | 26.4 | 49.0 | 20S | SS2K | 1RA | PVC04 | 0.13 |
| 20 | M20 | 15.0 | ½' | 19.9 | ¾" | 6.5 | 14.0 | 6.5 | 14.0 | 27.0 | 29.7 | 54.0 | 20 | SS2K | 1RA | PVC05 | 0.16 |
| 25 | M25 | 15.0 | ¾' | 20.2 | 1" | 11.1 | 20.0 | 11.1 | 20.0 | 36.0 | 39.6 | 66.0 | 25 | SS2K | 1RA | PVC09 | 0.30 |
| 32 | M32 | 15.0 | 1' | 25.0 | 1 ¼" | 17.0 | 26.3 | 17.0 | 26.3 | 41.0 | 45.1 | 67.0 | 32 | SS2K | 1RA | PVC10 | 0.35 |
| 40 | M40 | 15.0 | 1 ¼' | 25.6 | 1 ½" | 23.5 | 32.1 | 23.5 | 32.1 | 50.0 | 55.0 | 70.0 | 40 | SS2K | 1RA | PVC13 | 0.50 |
| 50S | M50 | 15.0 | 1 ½' | 26.1 | 2" | 31.0 | 38.2 | 31.0 | 38.2 | 55.0 | 60.5 | 65.0 | 50S | SS2K | 1RA | PVC15 | 0.56 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 ½" | 35.6 | 44.0 | 35.6 | 44.0 | 60.0 | 66.0 | 70.0 | 50 | SS2K | 1RA | PVC18 | 0.59 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 ½" | 41.5 | 49.9 | 41.5 | 49.9 | 70.5 | 77.6 | 70.0 | 63S | SS2K | 1RA | PVC21 | 0.89 |
| 63 | M63 | 15.0 | 2 ½' | 39.9 | 3" | 47.2 | 55.9 | 47.2 | 55.9 | 75.0 | 82.5 | 71.0 | 63 | SS2K | 1RA | PVC23 | 0.85 |
| 75S | M75 | 15.0 | 2 ½' | 39.9 | 3" | 54.0 | 61.9 | 54.0 | 61.9 | 80.0 | 88.0 | 70.0 | 75S | SS2K | 1RA | PVC25 | 1.02 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 ½" | 61.1 | 67.9 | 61.1 | 67.9 | 84.0 | 92.4 | 75.0 | 75 | SS2K | 1RA | PVC26 | 0.99 |
| 90 | M90 | 24.0 | 3 ½' | 42.8 | 4" | 66.6 | 79.4 | 66.6 | 79.4 | 108.0 | 118.8 | 113.0 | 90 | SS2K | 1RA | PVC31 | 2.99 |
| 100 | M100 | 24.0 | 3 ½' | 42.8 | 4" | 76.0 | 90.9 | 76.0 | 90.9 | 123.0 | 134.2 | 106.0 | 100 | SS2K | 1RA | LSF33 | 3.39 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 86.0 | 97.9 | 133.4 | 146.7 | 128.0 | 115 | SS2K | 1RA | LSF34 | 5.32 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 97.0 | 114.9 | 152.4 | 167.6 | 129.0 | 130 | SS2K | 1RA | LSF35 | 6.35 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
Additional Information
Material Selection & Preservation for Longevity of Service
The selection of material by a customer often comes down to either carefully developed client specifications; cost / value options; or a combination of both. There will be numerous applications where the material selection is a lot more critical than it is in others.
Read moreNEMA 250 & IEC 60529
The table included on this page is provided for comparison purposes between typical NEMA 250 and IEC 60529 ratings.
Read moreCMP Ingress Protection Testing
Some CMP cable gland types have been tested to IP66, whilst other types have been tested to IP66, IP67 & IP68, to an equivalent depth of up to 60 metres for a duration of two weeks. For manufacturers to claim an IP68 protection level it is important that they include both the depth of water and time duration of the test conducted; otherwise the rating would be incomplete and meaningless.
