TSZ | EMC | Industrial Cable Gland For All Types of Braided / Screened Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

The TSZ range of strain relief metal cable glands are designed for superior EMC performance and suitable for use in industrial (safe) areas with all types of braided cables, and have a temperature rating of +105°c to -60°c.

With 360° earth contact around cable braid circumference, the TSZ can be used with confidence where an earth connection is required.

The TSZ range meets the requirements of well-known cable gland standards including EN 55032 and IEC 62444.

For more specific applications IP68 & IP69K ingress discs or plugs are available.

Features include:

  • Designed for superior EMC performance
  • 360° contact around screen circumference
  • Third party EMC performance tested to EN 55032
  • Unique strain relief sealing system
  • Third party certified to IEC/EN 62444
  • Widest cable range take on the market
  • Robust design, high quality materials
  • O-ring interface seal included as standard
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Product supplied in nickel-plated brass, or stainless steel on request
  • Nickel-plated brass locknut available (ordering suffix 2TN)

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification IEC 62444, EN 62444 (EN Metric only)
Mechanical Classifications* Impact = Level 6, Cable Anchorage = Type A
Enclosure Protection IK08 to IEC 62262 (7 joules)
Ingress Protection Rating** IP66, IP67, IP68**, IP69 and IP69K
Cable Gland Material Nickel-plated brass, Stainless Steel (option)
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Cable Type Screened or Braided
Sealing Technique CMP unique strain relief sealing system
Sealing Area(s) Cable Outer Sheath

* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Click here to view how to order

DUAL SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAX
16DTSZ1TA516DTSZ2TN5M166.012.03⁄8”11.03.010.020.022.023.60.033
20DTSZ1TA520DTSZ2TN5M206.512.01⁄2”14.05.014.024.026.426.70.046
25DTSZ1TA525DTSZ2TN5M257.012.03⁄4”15.09.018.030.033.032.00.081
32DTSZ1TA532DTSZ2TN5M328.012.01”18.012.525.039.042.937.80.134
40DTSZ1TA540DTSZ2TN5M408.015.01 1⁄4”18.019.032.050.055.044.70.252
50DTSZ1TA550DTSZ2TN5M509.015.01 1⁄2”19.022.038.057.062.748.70.347
63DTSZ1TA563DTSZ2TN5M6310.015.02”20.028.048.068.074.852.20.503
STANDARD SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAX
12TSZ1TA512TSZ2TN5M126.012.01⁄4”11.03.06.516.017.622.30.021
16STSZ1TA516STSZ2TN5M166.012.03⁄8”11.03.07.020.022.023.60.032
16TSZ1TA516TSZ2TN5M166.012.03⁄8”11.06.010.020.022.023.60.031
20STSZ1TA520STSZ2TN5M206.512.01⁄2”14.05.010.024.026.426.70.046
20TSZ1TA520TSZ2TN5M206.512.01⁄2”14.09.014.024.026.426.70.043
25STSZ1TA525STSZ2TN5M257.012.03⁄4”15.09.015.530.033.032.00.081
25TSZ1TA525TSZ2TN5M257.012.03⁄4”15.012.518.030.033.032.00.078
32STSZ1TA532STSZ2TN5M328.012.01”18.012.519.039.042.937.80.133
32TSZ1TA532TSZ2TN5M328.012.01”18.017.025.039.042.937.80.125
40STSZ1TA540STSZ2TN5M408.015.01 1⁄4”18.019.027.050.055.044.70.251
40TSZ1TA540TSZ2TN5M408.015.01 1⁄4”18.024.032.050.055.044.70.240
50STSZ1TA550STSZ2TN5M509.015.01 1⁄2”19.022.032.057.062.748.70.346
50TSZ1TA550TSZ2TN5M509.015.01 1⁄2”19.028.038.057.062.748.70.326
63STSZ1TA563STSZ2TN5M6310.015.02”20.028.039.068.074.852.20.501
63TSZ1TA563TSZ2TN5M6310.015.02”20.037.048.068.074.852.20.475
Part numbers in table are for standard metric entry threads. For guidance ordering alternate materials or alternate thread types, please contact your CMP sales representative.
† Weight displayed for standard metric entry thread only
For MOQ please contact CMP directly.
Dimensions displayed in mm unless otherwise specified.

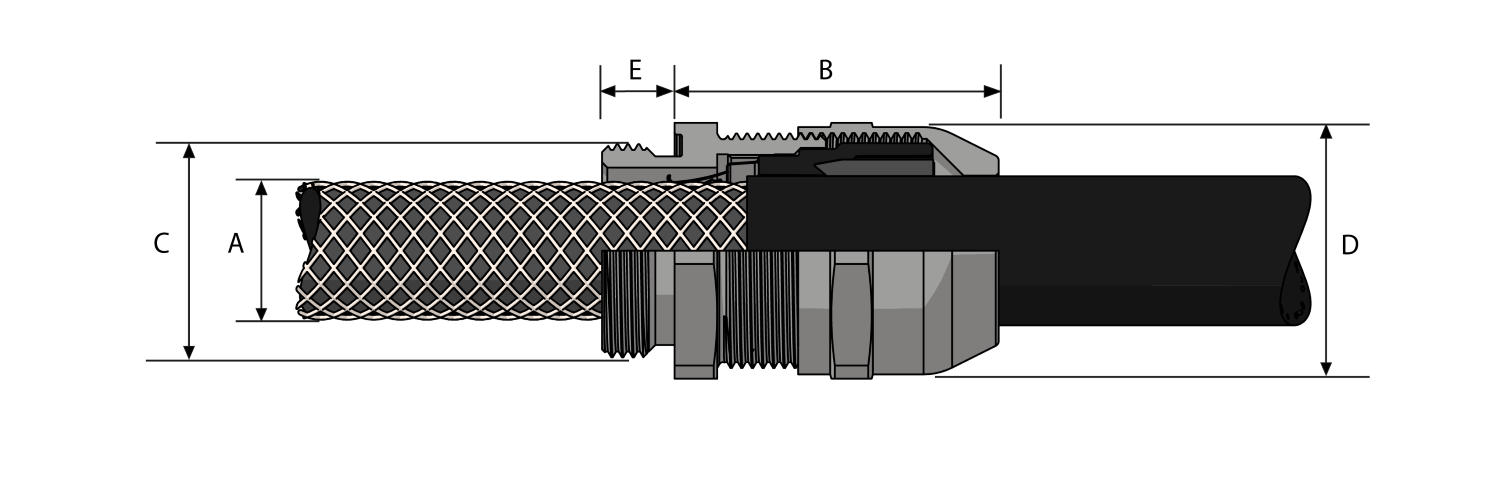

Technical Illustration
