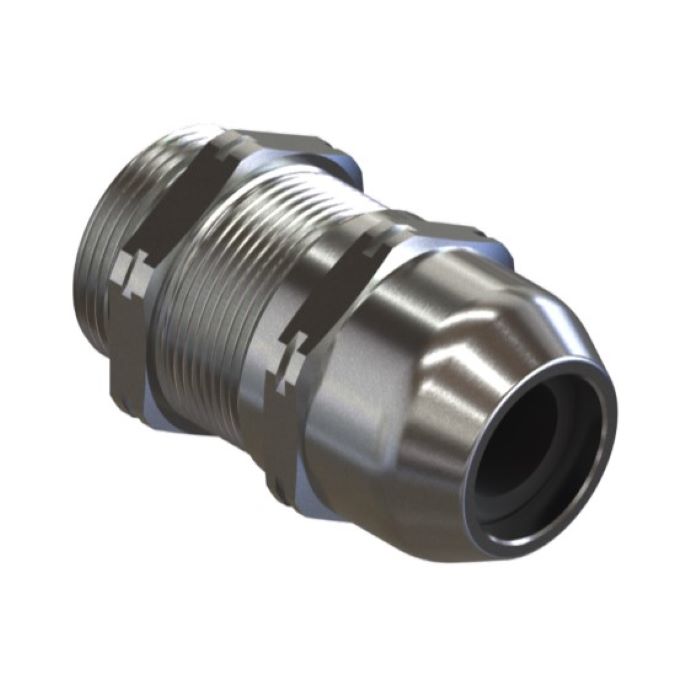

TSX | DIN 89345 | EMC Strain Relief Cable Gland For all Types of Braided/Screened Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

Please note the TSX range has been developed in accordance with DIN 89345 and must only be used in installations where this standard is followed.

The TSX range of strain relief metal cable glands are designed for superior EMC performance, whilst also utilising a armour clamping cone & ring design, and have a temperature rating of +105°C to -60°C.

The TSX range meets the requirements of well-known cable gland standards including EN 55032 and IEC 62444.

For more specific applications IP68 & IP69K ingress discs or plugs are available.

Features include:

  • Designed for superior EMC performance
  • Clamping cone and ring design
  • 360° contact round screen circumference
  • 3rd party EMC performance tested to EN 55032
  • Finger-locking seal provides superior cable retention and strain relief
  • 3rd party certified to IEC/EN 62444
  • Widest cable range take on the market
  • Robust design, high quality materials
  • O-ring interface seal included as standard
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Product supplied in nickel-plated brass, or stainless steel on request
  • Ex eb certified product also available
  • Nickel-plated brass locknut available (ordering suffix 2TN)

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification IEC 624 4 4, EN 624 4 4 (EN Metric only)
Mechanical Classifications* Impact = Level 6, Cable Anchorage = Type A
Enclosure Protection IK08 to IEC 62262 (7 joules)
Ingress Protection Rating** IP66, IP67, IP68**, IP69 and IP69K
Cable Gland Material Nickel-plated brass, Stainless Steel (option)
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Cable Type Braided
Sealing Technique CMP unique strain relief sealing system
Sealing Area(s) Cable Outer Sheath

* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Click here to view how to order

DUAL SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		CABLE BEDDING
DIAMETER ‘F’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAXMAX
16DTSX1TA516DTSX2TN5M166.012.03⁄8”11.03.010.07.520.022.030.70.037
20DTSX1TA520DTSX2TN5M206.512.01⁄2”14.05.014.09.524.026.433.80.048
25DTSX1TA525DTSX2TN5M257.012.03⁄4”15.09.018.016.030.033.039.00.090
32DTSX1TA532DTSX2TN5M328.012.01”18.012.525.020.039.042.945.00.140
40DTSX1TA540DTSX2TN5M408.015.01 1⁄4”18.019.032.026.050.055.052.40.269
50DTSX1TA550DTSX2TN5M509.015.01 1⁄2”19.022.038.033.057.062.755.80.346
63DTSX1TA563DTSX2TN5M6310.015.02”20.028.048.045.068.074.860.90.511
STANDARD SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		CABLE BEDDING
DIAMETER ‘F’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAXMAX
12TSX1TA512TSX2TN5M126.012.01⁄4”11.03.06.55.016.017.630.70.022
16STSX1TA516STSX2TN5M166.012.03⁄8”11.03.07.07.020.022.030.70.037
16TSX1TA516TSX2TN5M166.012.03⁄8”11.06.010.07.520.022.030.70.036
20STSX1TA520STSX2TN5M206.512.01⁄2”14.05.010.09.524.026.433.80.048
20TSX1TA520TSX2TN5M206.512.01⁄2”14.09.014.09.524.026.433.80.046
25STSX1TA525STSX2TN5M257.012.03⁄4”15.09.015.515.530.033.039.00.090
25TSX1TA525TSX2TN5M257.012.03⁄4”15.012.518.016.030.033.039.00.087
32STSX1TA532STSX2TN5M328.012.01”18.012.519.019.039.042.945.00.140
32TSX1TA532TSX2TN5M328.012.01”18.017.025.020.039.042.945.00.136
40STSX1TA540STSX2TN5M408.015.01 1⁄4”18.019.027.025.950.055.052.40.269
40TSX1TA540TSX2TN5M408.015.01 1⁄4”18.024.032.025.950.055.052.40.261
50STSX1TA550STSX2TN5M509.015.01 1⁄2”19.022.032.032.057.062.755.80.346
50TSX1TA550TSX2TN5M509.015.01 1⁄2”19.028.038.033.057.062.755.80.338
63STSX1TA563STSX2TN5M6310.015.02”20.028.039.039.068.074.860.90.511
63TSX1TA563TSX2TN5M6310.015.02”20.037.048.045.068.074.860.90.487
Part numbers in table are for standard metric entry threads. For guidance ordering alternate materials or alternate thread types, please contact your CMP sales representative
† Weight displayed for standard metric entry thread only
For MOQ please contact CMP directly.
Dimensions displayed in mm unless otherwise specified

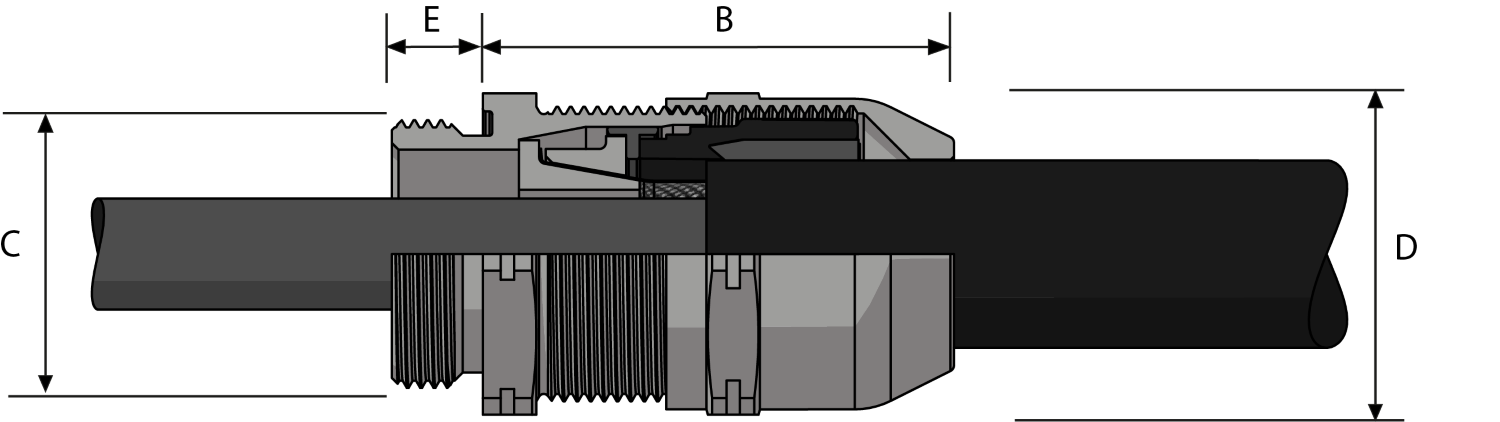

Technical Illustration

Additional Information

DIN 40050 Definitions

The following page provides an explanation of ingress protection codes according to DIN 40050-9 (liquids) and IEC 60529 (dusts).

Read more

Electrical Safety in the Work Place

Local codes of practice or regulations may be in force to ensure that safety is maintained to eliminate the possibility of accidents arising from the danger of electricity. These dangers would include electric shock, burns, fire, explosion and arcing. In the United Kingdom the ESQCR 2002, and amendments 2006 (S.I. No. 1521) and 2009 (S.I. No. 639), introduced under Statutory Instrument No. 2665, and the Electricity at Work Regulations 1989 (EAW Regulations), which came into force on 1 April 1990, comprehensively deal with this subject.

Read more

EMC Performance

Tests were carried out in an anechoic chamber using various CMP cable glands with a section of cable connected to it which would act as an aerial. A known electrical radiation source was used to introduce interference into the chamber, and the level of radiation in the cable shield was measured.

Read more
