TSPV0 | UL94 V-0 | Strain Relief Plastic Cable Gland For all Types of Unarmoured & Braided / Screened Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

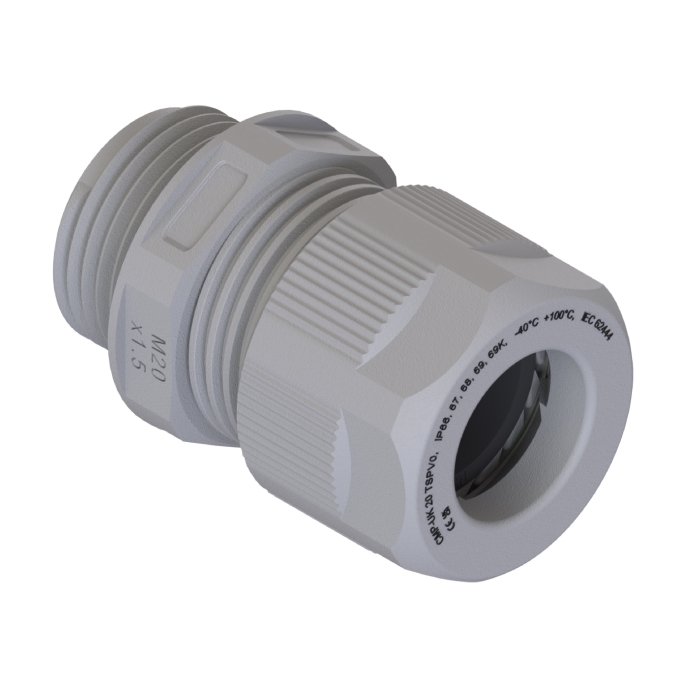

The TSPV0 is an industrial strain relief cable gland which can be used with all types of unarmoured and braided cables, and has a temperature rating of +100°c to -40°c.

For use in the construction of public buildings including tower blocks, airports, hospitals, stadia, and for essential services including, fire safety systems, rail infrastructure, tunnels and ventilation systems, where halogen-free cables are required.

Features include:

  • Halogen and phosphorus-free
  • Extremely flame retardant and self-extinguishing according to UL94 V-0
  • Incorporates CMP’s trusted SOLO technology
  • Third party certified to IEC/EN 62444
  • Unique strain relief sealing system
  • Low weight with high stiffness and strength
  • Widest cable range take for any comparable cable gland
  • Available in a variety of colours (see table below)
  • Approved entry thread sealing washer included
  • Polyamide metric locknut available (ordering suffix 2TN) – delivered assembled*

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification IEC 62444, EN 62444 (EN Metric only)
Mechanical Classifications* High impact resistance, contact CMP
Enclosure Protection High impact resistance, contact CMP
Ingress Protection Rating** IP66, IP67, IP68**, IP69 and IP69K
Flame Retardancy Glow Wire Test – EN/IEC 60695-2: 960°C
Flammability Test – EN/IEC 60695-11-10 / UL94: V-0
Cable Gland Material UL94 V-0 Halogen and phosphorus-free flame retardant polyamide
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Cable Type Unarmoured & Braided (when braid is terminated inside enclosure)
Sealing Technique CMP unique strain relief sealing system
Sealing Area(s) Cable Outer Sheath

* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Certificates

Click here to view Certificates

Click here to view how to order

DUAL SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAX
16DTSPV01TA16DTSPV02TNM169.015.03⁄8”11.03.010.019.020.927.00.009
20DTSPV01TA20DTSPV02TNM2010.015.01⁄2”14.05.014.024.026.230.50.014
25DTSPV01TA25DTSPV02TNM2510.015.03⁄4”15.09.018.030.032.736.00.025
32DTSPV01TA32DTSPV02TNM3212.015.01”18.012.524.840.043.641.00.047
40DTSPV01TA40DTSPV02TNM4012.018.01 1⁄4”18.019.032.050.054.549.00.083
50DTSPV01TA50DTSPV02TNM5012.018.01 1⁄2”19.022.038.058.063.259.00.135
63DTSPV01TA63DTSPV02TNM6315.018.02”20.028.048.068.074.164.00.194
STANDARD SEALAVAILABLE ENTRY THREADS ‘C’OVERALL CABLE
DIAMETER ‘A’		ACROSS
FLATS ‘D’		ACROSS
CORNERS ‘D’		PROTRUSION
LENGTH ‘B’		WEIGHT
GLAND ONLY †
(KG)
STANDARDOPTION
CABLE GLAND
ONLY		CABLE GLAND
WITH LOCKNUT		METRICTHREAD
LENGTH
(METRIC) ‘E’		LONG THREAD
LENGTH
(METRIC) ‘E’		NPTTHREAD
LENGTH
(NPT) ‘E’		MINMAXMAXMAX
12TSPV01TA12TSPV02TNM129.015.01⁄4”11.03.06.515.016.427.00.006
16STSPV01TA16STSPV02TNM169.015.03⁄8”11.03.07.019.020.927.00.009
16TSPV01TA16TSPV02TNM169.015.03⁄8”11.06.010.019.020.927.00.008
20STSPV01TA20STSPV02TNM2010.015.01⁄2”14.05.010.024.026.230.50.014
20TSPV01TA20TSPV02TNM2010.015.01⁄2”14.09.014.024.026.230.50.012
25STSPV01TA25STSPV02TNM2510.015.03⁄4”15.09.015.530.032.736.00.025
25TSPV01TA25TSPV02TNM2510.015.03⁄4”15.012.518.030.032.736.00.022
32STSPV01TA32STSPV02TNM3212.015.01”18.012.519.040.043.641.00.047
32TSPV01TA32TSPV02TNM3212.015.01”18.017.024.840.043.641.00.043
40STSPV01TA40STSPV02TNM4012.018.01-1⁄4”18.019.027.050.054.549.00.083
40TSPV01TA40TSPV02TNM4012.018.01-1⁄4”18.024.032.050.054.549.00.075
50STSPV01TA50STSPV02TNM5012.018.01-1⁄2”19.022.032.058.063.259.00.135
50TSPV01TA50TSPV02TNM5012.018.01-1⁄2”19.028.038.058.063.259.00.127
63STSPV01TA63STSPV02TNM6315.018.02”20.028.039.068.074.164.00.194
63TSPV01TA63TSPV02TNM6315.018.02”20.037.048.068.074.164.00.179
Part numbers in table are for standard metric entry threads. For guidance ordering alternate materials or alternate thread types, please contact your CMP sales representative.
† Weight displayed for standard metric entry thread only.
For MOQ please contact CMP directly.
Dimensions displayed in mm unless otherwise specified.
