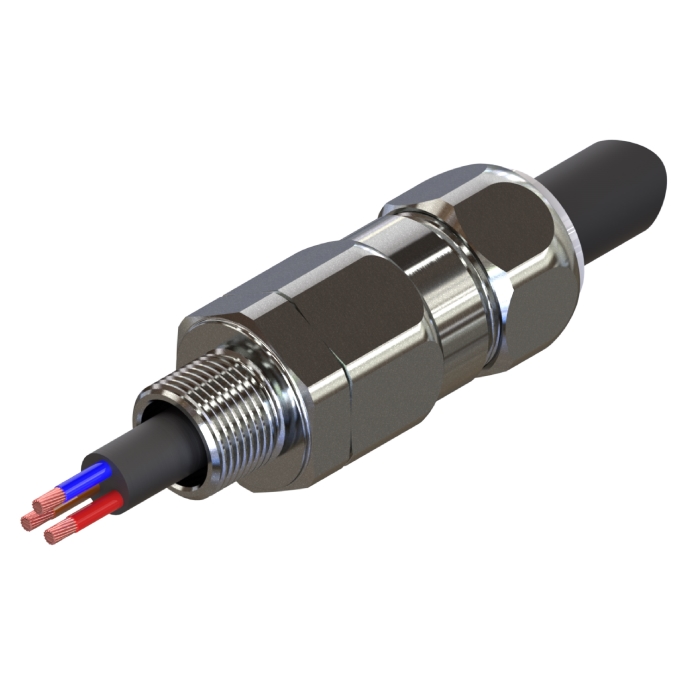

FORTRA TU | Industrial Cable Gland For All Types of Armoured & Braided / Screened Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

  • Unique patented captive Adaptive Cone for all types of armour or braid, with captive AnyWay clamping ring
  • Metal-to-metal armour clamping; no installation or inspection ambiguity
  • Fewer installation steps for faster process. Unique ‘Quick’ Thread for faster armour clamping
  • Inner diaphragm seal – safe, reliable & robust; no installation or inspection ambiguity
  • Excellent cold flow performance with third party verified test report on cable types used globally
  • Outer seal with wider cable acceptance, meaning fewer stocking sizes
  • IP66, 67, 68, 69 & 69K as standard with fully enclosed/protected deluge seal for third party compliance to DTS 01:91
  • Compact design; ideal for applications with limited installation space
  • Fewer tools required for installation and maintenance

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification BS 6121-1, IEC 62444, EN 62444
Mechanical Classifications* 16 -20S Impact = Category 6, 20 -130 Impact = Category 8,
Wire Armour Anchorage = Type D, Braid Anchorage = Type C
Enclosure Protection 16-20S IK08 to IEC 62262 (7 joules)
20-130 IK08 to IEC 62262 (20 joules)
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
Ingress Protection Rating** IP66, IP67, IP68***, IP69 and IP69K
Deluge Protection Compliance DTS 01:91
Temperature for permanent application -60 to +105 °C
Armour Clamping Dedicated Captive Armour Cone and AnyWay Clamping Ring
Seal Material LSF Halogen Free Silicone
Sealing Technique CMP Inner Diaphragm Seal and Outer Load Retention Seal
Sealing Area(s) Cable Inner Bedding and Cable Outer Sheath
Type Brass, Nickel Plated Brass, Aluminium, Stainless Steel
Marine Approvals Lloyds: LR22320255TA, ABS: 21-2090848-PDA
Marine Approvals CML 24CA17921

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444
** When CMP installation accessories are used. Refer to www.cmp-products.com for further information
*** IP68 tested to a depth of 30 metres for 7 days, alternative depths / durations can be provided on request

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

COMBINED ORDERING REFERENCE ENTRY THREAD SIZE 'TS'ENTRY THREAD PITCHMINIMUM THREAD LENGTH 'TL'INNER CABLE BEDDING DIAMETER 'IB'OVERALL CABLE DIAMETER 'OS'ARMOUR THICKNESSMAX ACROSS FLATSMAX ACROSS CORNERS 'AC'MAX PROTRUSION LENGTH 'PL'SHROUD SIZEASSEMLY WEIGHT (KG)
SIZETYPEORDERING SUFFIXMINMAXMINMAXMINMAX
20S16‡TU502M201.510.03.17.06.113.20.01.2524.026.471.5040.14
20S‡TU502M201.510.06.011.69.515.90.01.2524.026.471.5040.13
20TU502M201.510.08.014.012.520.90.01.2530.533.670.0060.21
25TU503M251.510.011.019.516.026.20.01.637.541.381.5090.34
32TU504M321.510.017.026.521.533.90.02.046.050.690.0110.53
40TU505M401.515.022.032.028.040.40.02.055.060.593.0150.76
50TU506M501.515.029.544.038.053.20.02.570.077.0101.5211.20
63TU507M631.515.041.555.052.066.00.02.580.088.0113.0251.49
75TU508M751.515.053.568.064.578.50.03.15100.0110.0112.5302.61
90TU509M90224.066.078.575.090.50.84.0114.0125.4150.5324.91
100TU5010M100224.076.090.586.0101.50.84.0123.0135.3160.0335.22
115TU5011M115224.086.098.0101.0110.50.84.0133.0146.3180.5347.25
130TU5012M130224.097.5115.0110.0123.50.84.0153.0168.3191.5359.47
Dimensions listed are for cable glands with metric equipment entry threads only. Alternative entry thread types e.g. NPT are available; dimensions may vary.
Part numbers listed are for nickel plated brass cable glands only. Alternative materials are available. ‡ Also available in M16 on request.
For material options, please change the ‘material suffix’, which is the first digit in the ‘ordering suffix’. Brass = 0, Stainless Steel = 4 and Nickel Plated Brass = 5.
Examples: 20TU002 = Brass M20, 40TU405 = Stainless Steel M40.
For NPT thread options, please change the second digit in the ‘ordering suffix’ to 3 (denotes NPT) and change the final digit to denote the thread size i.e. ½” = 31, ¾” = 32, 1” = 33, 1-1/4” = 34,
1-1/2” = 35, 2” = 36, 2-1/2” = 37, 3” = 38, 3-1-2” = 39, 4” = 310, 5” = 312. Examples: 32TU533 = Nickel Plated Brass 1” NPT, 50TU436 = Stainless Steel 2” NPT.
Sizes 90-130 are provided with a reversible armour cone. The ‘X’ side clamps 0.8 – 1.6 mm and the ‘W’ side clamps 3.15 – 4.0 mm.

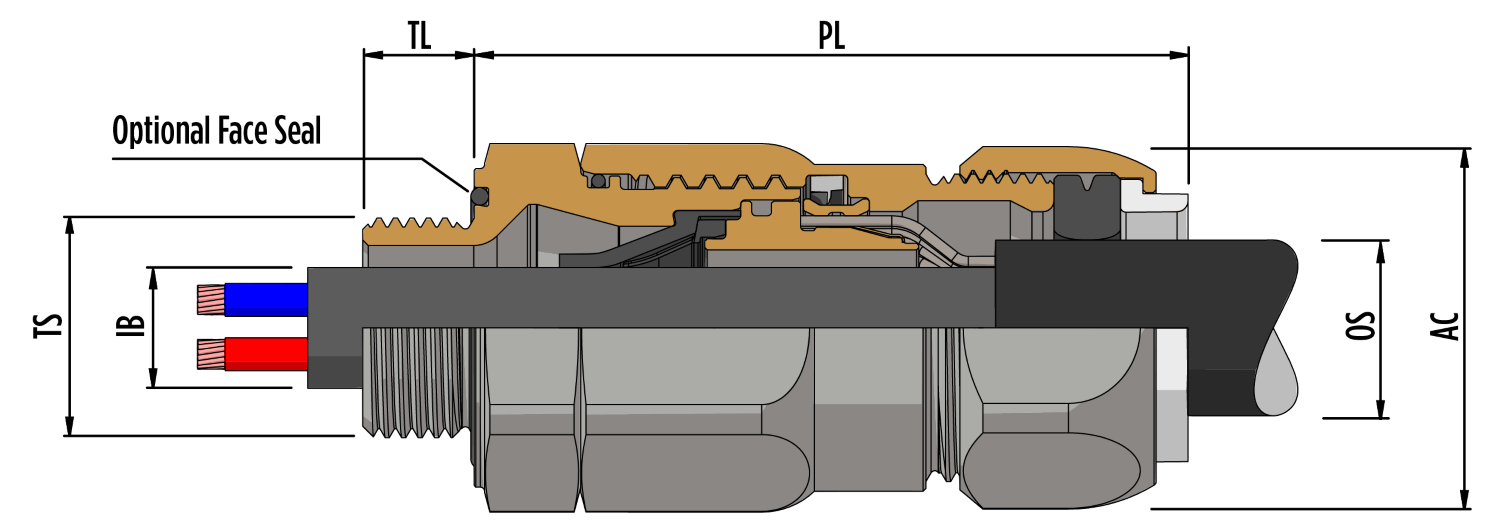

Technical Illustration
