- TSPe Ex | Ex eb, Ex ta | Strain Relief Plastic Cable Gland
- Ex ta
| Colour | Suffix | Metric Ordering Example | NPT Ordering Example | |
| Black - RAL9011 | - | 12TSPE1TA | 12TSPE1TAT | |
| Blue - RAL5015 | 4 | 12TSPE1TA4 | 12TSPE1TA4T | |
-
IP66, 67, 68, 69K
-
+95°C to -40°C

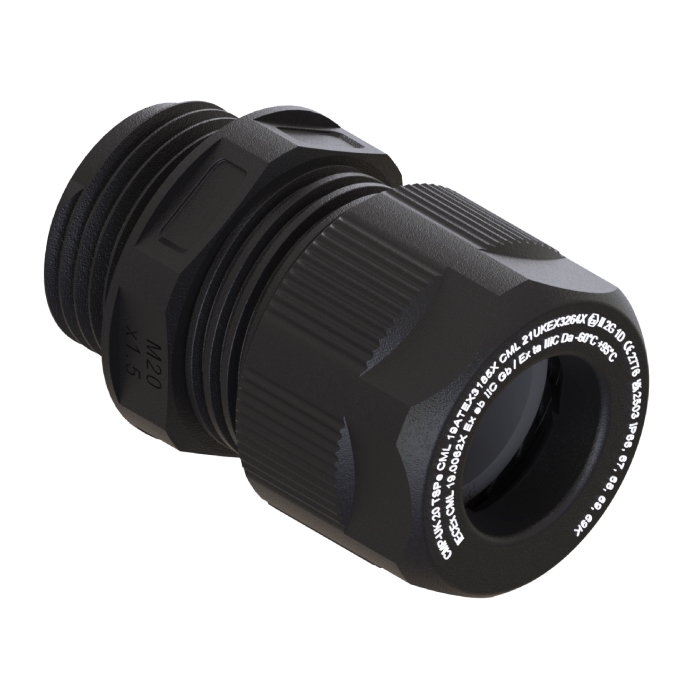

TSPe Ex | Ex eb, Ex ta | Strain Relief Plastic Cable Gland For all types of Unarmoured & Braided / Screened Cables
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
The TSPe Ex polymer strain relief range of cable glands are suitable for use in explosive atmospheres with unarmoured or braided cable when terminated inside the enclosure, and have a temperature rating of +95°c to -60°c.
With the widest cable sealing range on the market, the TSPe Ex reduces the number of different sized cable glands required for projects, reducing the overall cost.
The TSPe Ex range meets the requirements of well-known cable gland standards including EN 62444 and IEC 62444.
For more specific applications IP68 & IP69X ingress discs or plugs are available.
Features include:
- Halogen and phosphorus-free
- Finger-locking seal provides superior cable retention and strain relief
- Approved to the latest editions of IEC/EN 60079
- Internationally marked IECEx & ATEX
- Intrinsically safe (Ex i) blue nut version available
- 3rd party certified to IEC/EN62444
- Widest cable range take for any comparable cable gland
- Low weight with high stiffness and strength
- Anti-vibration technology prevents gland loosening in operation
- Transit disc or IP68, IP69 and IP69K rated IP plug options available
- Approved entry thread sealing washer included
- For clearance holes the TSPe must be installed using a CMP metallic locknut
(available with the cable gland using ordering suffix 2TN)
Tightening tools may be required to aid installation. For further information, please click here.
| Design Specification | IEC 62444, EN 62444 (EN Metric only) |
| Mechanical Classifications* | 12-16 Impact = Level 5, 20-63 Impact = Level 6, Cable Anchorage = Type A |
| Enclosure Protection | 12-16 IK07 to IEC 62262 (4 joules), 20-63 IK08 to IEC 62262 (7 joules) |
| Ingress Protection Rating** | IP66, IP67, IP68**, IP69 & IP69K |
| Cable Gland Material | Halogen-free Polyamide |
| Seal Material | CMP SOLO LSF Halogen-free Thermoset Elastomer |
| Cable Type | Unarmoured & Braided when terminated inside enclosure |
| Sealing Technique | CMP Unique finger-locking type seal |
| Sealing Area(s) | Cable Outer Sheath |
| ATEX Certificate | CML 19ATEX3185X |
| Compliance Standards | EN 60079-0,7,31 |
| Code of Protection | II 2G 1D, Ex eb IIC Gb, Ex ta IIIC Da |
| IECEx Certificate | IECEx CML 19.0062X |
| Compliance Standards | IEC 60079-0,7,31 |
| Code of Protection | Ex eb IIC Gb, Ex ta IIIC Da |
| EAC Certificate | RU C-GB. AД07.B.02516/20 |
| SANS | IA S-XPL21804 21.0014X |
| Marine Approvals | TAE000000Y |
| CCC Certificate | 2020322313003450 |
| CCOE / PESO (India) Certificate | Ex e: P533772 |
| ECAS Certificate | 24-03-106290/E24-03-110155/NB0007 |
* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)
Certificates
Click here to view how to order

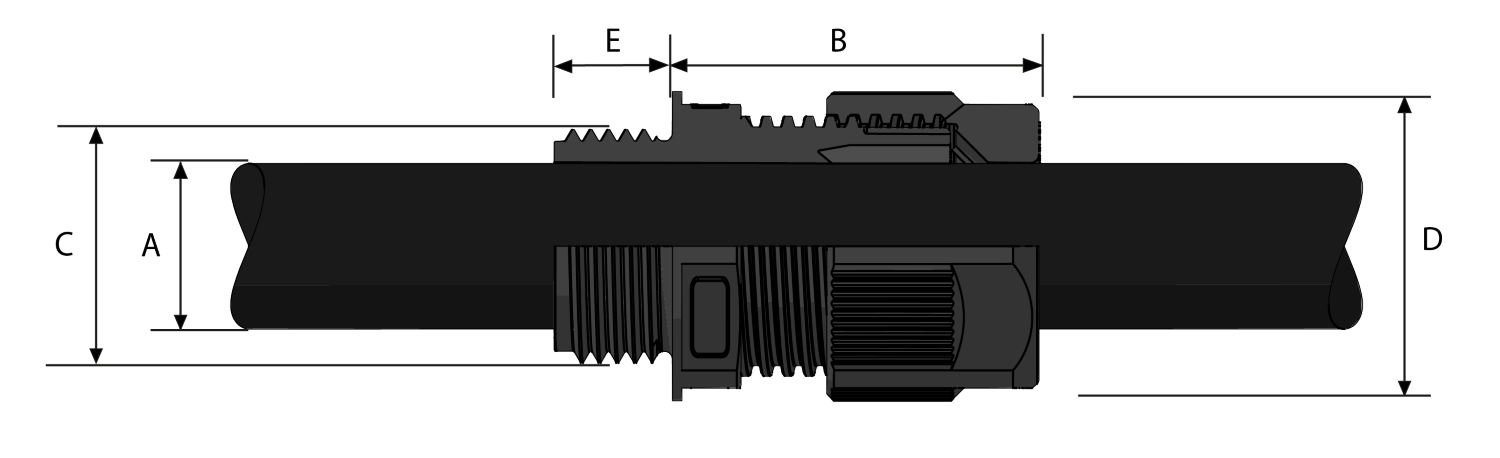

| Dual Seal | Available Entry Threads 'C' | Overall Cable Diameter 'A' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'B' | ||||||
| Standard | Option | ||||||||||
| Cable Gland Only | Cable Gland with Locknut | Metric | Thread Length (Metric) 'E' | Long Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | Min | Max | Max | Max | |
| 16DTSPe1TA | 16DTSPe2TN | M16 | 9.0 | 15.0 | 3⁄8” | 11.0 | 3.2 | 10.0 | 19.0 | 20.9 | 27.0 |
| 20DTSPe1TA | 20DTSPe2TN | M20 | 10.0 | 15.0 | 1⁄2” | 14.0 | 5.5 | 14.0 | 24.0 | 26.2 | 30.5 |
| 25DTSPe1TA | 25DTSPe2TN | M25 | 10.0 | 15.0 | 3⁄4” | 15.0 | 9.0 | 18.0 | 30.0 | 32.7 | 36.0 |
| 32DTSPe1TA | 32DTSPe2TN | M32 | 12.0 | 15.0 | 1” | 18.0 | 12.5 | 25.0 | 40.0 | 43.6 | 41.0 |
| 40DTSPe1TA | 40DTSPe2TN | M40 | 12.0 | 18.0 | 1 1⁄4” | 18.0 | 19.0 | 32.0 | 50.0 | 54.5 | 49.0 |
| 50DTSPe1TA | 50DTSPe2TN | M50 | 12.0 | 18.0 | 1 1⁄2” | 19.0 | 22.0 | 38.0 | 58.0 | 63.2 | 59.0 |
| 63DTSPe1TA | 63DTSPe2TN | M63 | 15.0 | 18.0 | 2” | 20.0 | 28.0 | 48.0 | 68.0 | 74.1 | 64.0 |
| Standard Seal | Available Entry Threads 'C' | Overall Cable Diameter 'A' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'B' | ||||||
| Standard | Option | ||||||||||
| Cable Gland Only | Cable Gland with Locknut | Metric | Thread Length (Metric) 'E' | Long Thread Length (Metric) 'E' | NPT | Thread Length (NPT) 'E' | Min | Max | Max | Max | |
| 12TSPe1TA | 12TSPe2TN | M12 | 9.0 | 15.0 | 1⁄4” | 11.0 | 3.0 | 6.5 | 15.0 | 16.4 | 27.0 |
| 16STSPe1TA | 16STSPe2TN | M16 | 9.0 | 15.0 | 3⁄8” | 11.0 | 3.0 | 7.0 | 19.0 | 20.9 | 27.0 |
| 16TSPe1TA | 16TSPe2TN | M16 | 9.0 | 15.0 | 3⁄8” | 11.0 | 6.0 | 10.0 | 19.0 | 20.9 | 27.0 |
| 20STSPe1TA | 20STSPe2TN | M20 | 10.0 | 15.0 | 1⁄2” | 14.0 | 5.0 | 10.0 | 24.0 | 26.2 | 30.5 |
| 20TSPe1TA | 20TSPe2TN | M20 | 10.0 | 15.0 | 1⁄2” | 14.0 | 9.0 | 14.0 | 24.0 | 26.2 | 30.5 |
| 25STSPe1TA | 25STSPe2TN | M25 | 10.0 | 15.0 | 3⁄4” | 15.0 | 9.0 | 15.5 | 30.0 | 32.7 | 36.0 |
| 25TSPe1TA | 25TSPe2TN | M25 | 10.0 | 15.0 | 3⁄4” | 15.0 | 12.5 | 18.0 | 30.0 | 32.7 | 36.0 |
| 32STSPe1TA | 32STSPe2TN | M32 | 12.0 | 15.0 | 1” | 18.0 | 12.5 | 19.0 | 40.0 | 43.6 | 41.0 |
| 32TSPe1TA | 32TSPe2TN | M32 | 12.0 | 15.0 | 1” | 18.0 | 17.0 | 25.0 | 40.0 | 43.6 | 41.0 |
| 40STSPe1TA | 40STSPe2TN | M40 | 12.0 | 18.0 | 1 1⁄4” | 18.0 | 19.0 | 27.0 | 50.0 | 54.5 | 49.0 |
| 40TSPe1TA | 40TSPe2TN | M40 | 12.0 | 18.0 | 1 1⁄4” | 18.0 | 24.0 | 32.0 | 50.0 | 54.5 | 49.0 |
| 50STSPe1TA | 50STSPe2TN | M50 | 12.0 | 18.0 | 1 1⁄2” | 19.0 | 22.0 | 32.0 | 58.0 | 63.2 | 59.0 |
| 50TSPe1TA | 50TSPe2TN | M50 | 12.0 | 18.0 | 1 1⁄2” | 19.0 | 28.0 | 38.0 | 58.0 | 63.2 | 59.0 |
| 63STSPe1TA | 63STSPe2TN | M63 | 15.0 | 18.0 | 2” | 20.0 | 28.0 | 39.0 | 68.0 | 74.1 | 64.0 |
| 63TSPe1TA | 63TSPe2TN | M63 | 15.0 | 18.0 | 2” | 20.0 | 37.0 | 48.0 | 68.0 | 74.1 | 64.0 |
| For NPT threads add a ‘T’ to the suffix e.g. 16DTSPE1TAT (3⁄8” NPT, black), 40DTSPE1TAT1 (1 1⁄4” NPT, grey (silver)) For long metric threads add an ‘L’ to the suffix e.g. 16DTSPE1TAL (M16, black with 15mm length of entry thread). |
|||||||||||
| Dimensions are displayed in millimetres unless otherwise stated | |||||||||||
Equipment Surface Temperature Classification
Classification of the maximum surface temperature of equipment has been established internationally to create a uniform reference table (unless otherwise specified on equipment selected, the maximum ambient temperature is taken as being 40°C, in line with IEC 60079 Standards). The purpose of the temperature classification is to place equipment into an appropriate category according to its specific thermal properties when exposed to the worst case conditions.
Read moreCable Gland for Cables Entering Ex e & Ex i Equipment
Although the minimum requirements for Ex e and Ex i enclosures could be met by cable glands with a single outer seal, the majority of users prefer to standardise on a double seal cable gland, to maintain a site standard, and ensure that cable gland types are not inadvertently mixed between different types of equipment protection.
