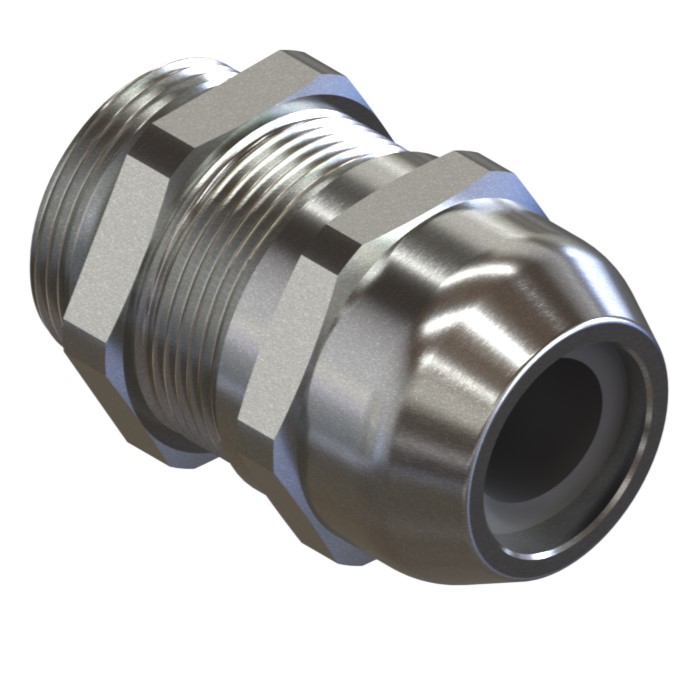

TSMe Ex | Ex eb, Ex ta | Strain Relief Metal Cable Gland For all types of Unarmoured & Braided / Screened cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

The TSMe Ex range of strain relief metal cable glands are suitable for use in explosive atmospheres with unarmoured or braided cable when terminated inside the enclosure, and have a temperature rating of +105°c to -60°c.

With approvals to the latest editions of IEC 60079 and EN 62444, as well as being internationally marked IECEx and ATEX, the TSMe Ex range ensures that cables and enclosures are protected with explosive atmospheres.

The TSMe Ex range is suitable for intrinsically safe (Ex i) circuits.

For more specific applications IP68 & IP69K ingress discs or plugs are available.

Features include:

  • Unique strain relief sealing system
  • Approved to the latest editions of IEC/EN 60079
  • Internationally marked IECEx, ATEX and UKEX
  • Suitable for intrinsically safe (Ex i) circuits
  • Third party certified to IEC/EN 62444
  • Widest cable range take on the market
  • Easy to install
  • Robust design, high quality materials
  • O-ring interface seal included as standard
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Product supplied in nickel-plated brass, or stainless steel on request
  • Nickel-plated brass locknut available (ordering suffix 2TN)

Tightening tools may be required to aid installation. For further information, please click here.

Design Specification IEC 62444, EN 62444 (EN Metric only)
Mechanical Classifications* Impact = Level 6, Cable Anchorage = Type A
Enclosure Protection IK08 to IEC 62262 (7 joules)
Ingress Protection Rating ** IP66, IP67, IP68**, IP69 and IP69K
Cable Gland Material Nickel-plated brass, Stainless Steel (option)
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Cable Type Unarmoured and Braided (when braid is terminated inside enclosure)
Sealing Technique CMP unique strain relief sealing system
Sealing Area(s) Cable Outer Sheath
ATEX Certificate CML 19ATEX3185X
UKEX Certificate CML 21UKEX3264X
Code of Protection II 2G 1D, Ex eb IIC Gb, Ex ta IIIC Da
Compliance Standards EN 60079-0,7,31
EAC Certificate RU C-GB. AД07.B.02516/20
SANS IA S-XPL21804 21.0014X
IECEx Certificate IECEx CML 19.0062X
Code of Protection Ex eb IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,7,31
CCC Certificate 2020322313003450

* Mechanical classifications applied as per IEC/EN 62444
** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Certificates

Click here to view Certificates

Click here to view how to order

DUAL SEALAVAILABLE ENTRY THREADS 'C'OVERALL CABLE DIAMETER 'A'ACROSS FLATS 'D'ACROSS CORNERS 'D'PROTRUSION LENGTH 'B'WEIGHT GLAND ONLY † (KG)
STANDARDOPTION
CABLE GLAND ONLYCABLE GLAND WITH LOCKNUTMETRICTHREAD LENGTH (METRIC) 'E'LONG THREAD LENGTH (METRIC) 'E'NPTTHREAD LENGTH (NPT) 'E'MINMAXMAXMAX
16DTSME1TA516DTSME2TN5M166.012.03⁄8”11.03.010.020.022.023.60.033
20DTSME1TA520DTSME2TN5M206.512.01⁄2”14.05.014.024.026.426.70.046
25DTSME1TA525DTSM2TN5M257.012.03⁄4”15.09.018.030.033.032.00.081
32DTSME1TA532DTSME2TN5M328.012.01”18.012.525.039.042.937.80.134
40DTSME1TA540DTSME2TN5M408.015.01 1⁄4”18.019.032.050.055.044.70.252
50DTSME1TA550DTSME2TN5M509.015.01 1⁄2”19.022.038.057.062.748.70.347
63DTSME1TA563DTSME2TN5M6310.015.02”20.028.048.068.074.852.20.503
STANDARD SEALAVAILABLE ENTRY THREADS 'C'OVERALL CABLE DIAMETER 'A'ACROSS FLATS 'D'ACROSS CORNERS 'D'PROTRUSION LENGTH 'B'WEIGHT GLAND ONLY † (KG)
STANDARDOPTION
CABLE GLAND ONLYCABLE GLAND WITH LOCKNUTMETRICTHREAD LENGTH (METRIC) 'E'LONG THREAD LENGTH (METRIC) 'E'NPTTHREAD LENGTH (NPT) 'E'MINMAXMAXMAX
12TSME1TA512TSME2TN5M126.012.01⁄4”11.03.06.516.017.622.30.020
16STSME1TA516STSME2TN5M166.012.03⁄8”11.03.07.020.022.023.60.032
16TSME1TA516TSME2TN5M166.012.03⁄8”11.06.010.020.022.023.60.032
20STSME1TA520STSME2TN5M206.512.01⁄2”14.05.010.024.026.426.70.046
20TSME1TA520TSME2TN5M206.512.01⁄2”14.09.014.024.026.426.70.045
25STSME1TA525STSME2TN5M257.012.03⁄4”15.09.015.530.033.032.00.081
25TSME1TA525TSME2TN5M257.012.03⁄4”15.012.518.030.033.032.00.080
32STSME1TA532STSME2TN5M328.012.01”18.012.519.039.042.937.80.133
32TSME1TA532TSME2TN5M328.012.01”18.017.025.039.042.937.80.130
40STSME1TA540STSME2TN5M408.015.01 1⁄4”18.019.027.050.055.044.70.251
40TSME1TA540TSME2TN5M408.015.01 1⁄4”18.024.032.050.055.044.70.250
50STSME1TA550STSME2TN5M509.015.01 1⁄2”19.022.032.057.062.748.70.346
50TSME1TA550TSME2TN5M509.015.01 1⁄2”19.028.038.057.062.748.70.340
63STSME1TA563STSME2TN5M6310.015.02”20.028.039.068.074.852.20.501
63TSME1TA563TSME2TN5M6310.015.02”20.037.048.068.074.852.20.489
Part numbers in table are for standard metric entry threads. For guidance ordering alternate materials or alternate thread types, please contact your CMP sales representative.
† Weight displayed for standard metric entry thread only.
For MOQ please contact CMP directly.
Dimensions displayed in mm unless otherwise specified.

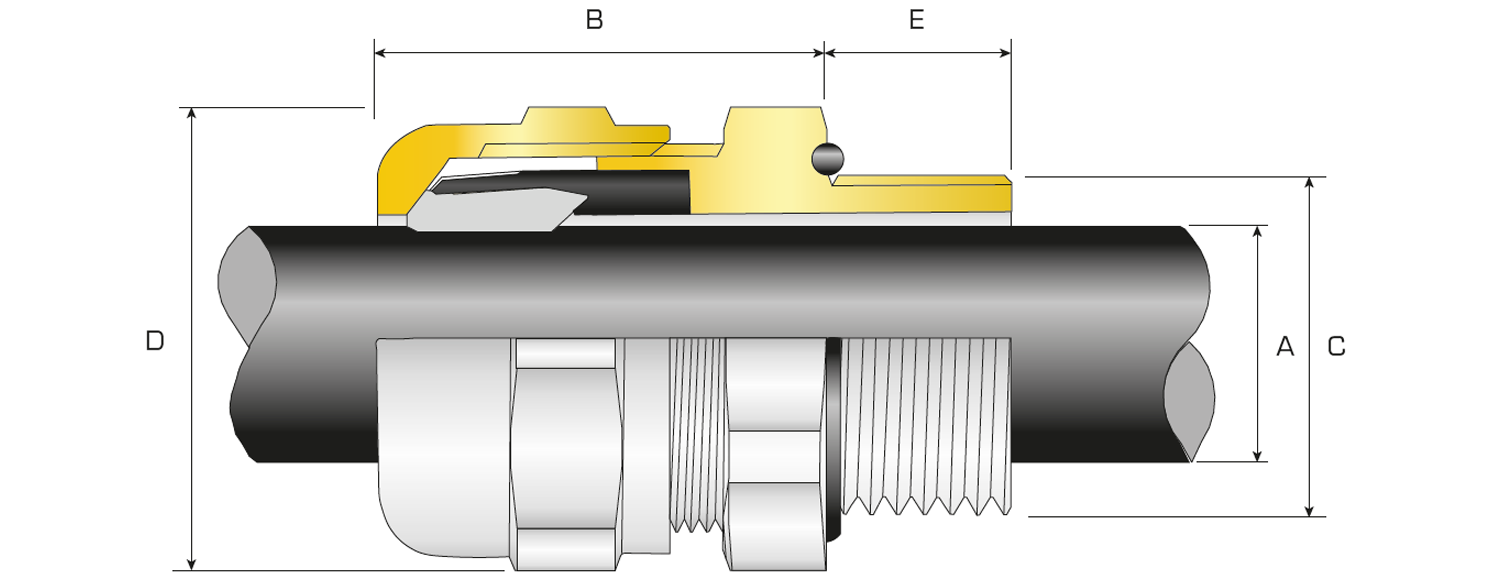

Technical Illustration
