CG | Cord Grip Cable Connector For use with Flexible Cables and Cords in Ordinary, Wet or Hazardous Locations

The CG cable connector series is cULus Listed to the latest editions of UL514B and CSA 22.2 No.18.3-12, for use with all types of flexible cables and cords for installations in accordance with the NEC and CEC. Its wide sealing range reduces the need for multiple connector sizes to cover a varied range of cables.

The CG is supplied complete with an entry thread seal and locknut, for sizes up to 1-1/2”, and is available in Aluminum or Zinc Plated Steel , as standard, with Electroless Nickel Plated Brass and 316L Stainless Steel optional. The product has an operational temperature range of -76°F to 194°F and if additional cable support or retention is required, the CG can easily accommodate a strain relief, making the CMP CG series suitable for use in many harsh and corrosive environments.

  • Fully machined from high grade series 6000 aluminum or zinc plated steel
  • Can also be supplied in stainless steel or nickel plated brass on request
  • Product supplied with entry thread seal and locknut up to CG-150*104
  • Safe sealing solution manufactured from LSF halogen free thermoset elastomer, with a large temperature range of -76°F to +194°F
  • Wide cable sealing range
  • Easy to install
  • Approved to the latest edition of UL 514B & CSA C22.2 No.18.3-12
  • Suitable for use in hazardous locations when installed per National Electrical Code (NEC 501.10(B)(4)) & Canadian Electrical Code (CSA 22.1)
  • Strain relief available
Ingress Protection Rating** IP66, IP67 & IP68***
NEMA Rating** NEMA 4X, 6P
Cable Gland Material 6000 Series Aluminum, Zinc Plated Steel, Stainless Steel, Nickel Plated Brass
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer, -76˚F-+194˚F
Cable Type Flexible cable and cord
Sealing Technique CMP Displacement Seal
Sealing Area(s) Cable Outer Sheath
UL Certificate E509101L*, E509101R*,
Compliance Standards UL514B, UL50E, CSA C22.2 No.18.3-12, CSA C22.2 No.94.2-15

*All sizes UL Listed, except NPT 3/8” - UL Recognized Component
** Contact CMP for further information on Ingress Protection Ratings
*** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

ORDER REFERENCE
(NPT)
ENTRY THREAD ‘C’MINIMUM
THREAD
LENGTH ‘E’
CABLE RANGE ‘A’ACROSS
FLATS ‘D’
ACROSS
CORNERS ‘D’
NOMINAL ASSEMBLY
LENGTH ‘B’
ALUMINUMZINC PLATED STEELNPTMinMax MaxMax
*CG-0375A046*CG-0375MS046⅜”0.410.300.460.941.041.15
CG-050A046CG-050MS046½”0.530.941.041.15
CG-075A046CG-075MS046¾”0.551.201.321.18
CG-100A046CG-100MS0461"0.681.481.631.22
CG-050A054CG-050MS054½”0.530.300.541.201.321.13
CG-075A054CG-075MS054¾”0.551.481.631.17
CG-100A054CG-100MS0541"0.681.481.631.21
CG-075A080CG-075MS080¾”0.550.510.801.481.631.47
CG-100A080CG-100MS0801”0.681.481.631.51
CG-100A104CG-100MS1041”0.680.751.041.691.861.42
CG-125A104CG-125MS1041 ¼”0.711.972.171.42
CG-150A104CG-150MS1041 ½”0.722.172.381.50
CG-125A128CG-125MS1281 ¼”0.710.911.282.052.251.45
CG-150A128CG-150MS1281 ½”0.722.172.381.53
CG-150A149CG-150MS1491 ½”0.721.221.492.362.601.56
CG-200A149CG-200MS1492”0.762.562.811.56
CG-200A174CG-200MS1742”0.761.431.742.562.811.57
CG-250A174CG-250MS1742 ½”1.142.953.271.57
For cable glands suitable for larger cable OD please see TC product page
Product supplied with entry thread seal and locknut up to CG-150*104
Additional combinations of body size and thread are available upon request
*All sizes UL Listed, except NPT 3/8” - UL Recognized Component
ORDER REFERENCE
(NPT)
ENTRY THREAD ‘C’MINIMUM
THREAD
LENGTH ‘E’
CABLE RANGE ‘A’ACROSS
FLATS ‘D’
ACROSS
CORNERS ‘D’
NOMINAL ASSEMBLY
LENGTH ‘B’
ALUMINUMZINC PLATED STEELNPTMinMax MaxMax
*CG-0375A046*CG-0375MS046⅜”10.47.711.624.026.429.1
CG-050A046CG-050MS046½”13.524.026.429.1
CG-075A046CG-075MS046¾”14.030.533.630.0
CG-100A046CG-100MS0461"17.337.541.331.0
CG-050A054CG-050MS054½”13.57.713.730.533.628.7
CG-075A054CG-075MS054¾”14.037.541.329.7
CG-100A054CG-100MS0541"17.337.541.330.7
CG-075A080CG-075MS080¾”14.013.020.337.541.337.3
CG-100A080CG-100MS0801”17.337.541.338.3
CG-100A104CG-100MS1041”17.319.126.543.047.336.1
CG-125A104CG-125MS1041 ¼”18.050.055.036.1
CG-150A104CG-150MS1041 ½”18.355.060.538.1
CG-125A128CG-125MS1281 ¼”18.023.032.552.057.236.8
CG-150A128CG-150MS1281 ½”18.355.060.538.8
CG-150A149CG-150MS1491 ½”18.331.037.960.066.039.5
CG-200A149CG-200MS1492”19.365.071.539.5
CG-200A174CG-200MS1742”19.336.444.365.071.539.8
CG-250A174CG-250MS1742 ½”29.075.083.039.8
Additional combinations of body size and thread are available upon request
Product supplied with entry thread seal and locknut up to CG-150*104
For cable glands suitable for larger cable OD please see TC product page
*All sizes UL Listed, except NPT 3/8” - UL Recognized Component

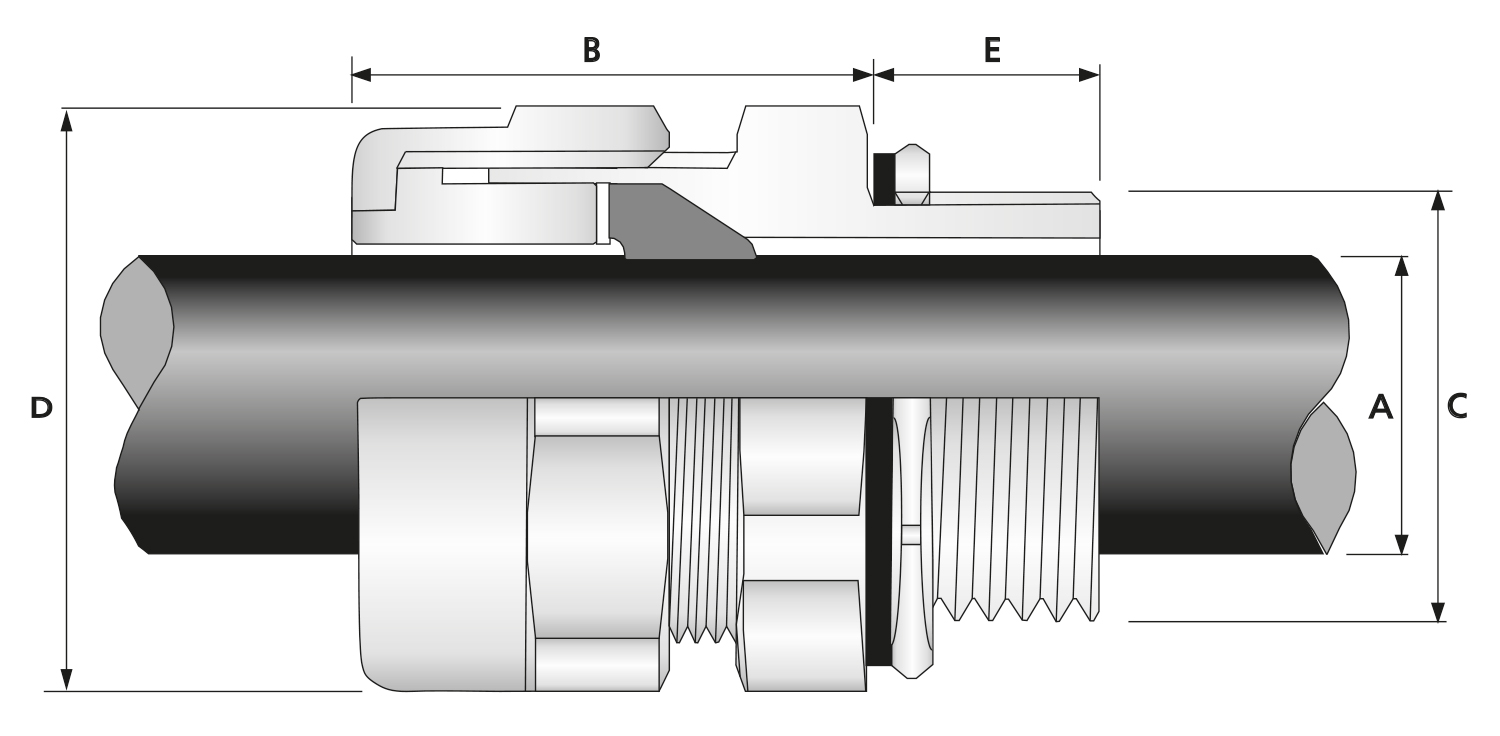

Technical Illustration
