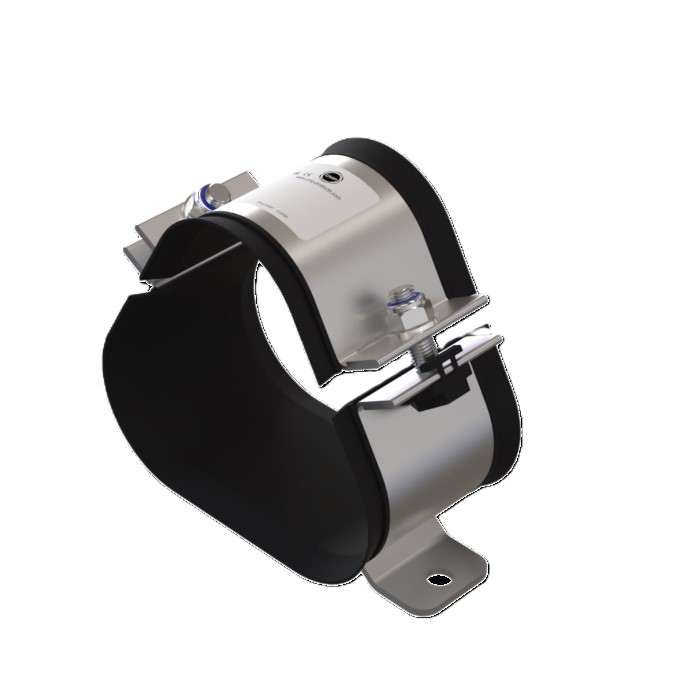

Everest-S (HVSS-CC-S) High Voltage, Stainless Steel, Top Opening, Closed Centres, Trefoil Formation Cable Cleat

CMP Everest-S trefoil cable cleat range has been designed for the safe retention of high voltage cables. The Everest-S is designed, constructed and tested in accordance with the International Standard IEC 61914: Cable cleats for electrical installations; to ensure the securing and retention of cables without sustaining damage to the cable(s). The S version of this product is designed to be used with smaller cables of size 52mm up to 100mm diameter. For larger cables please see the Everest HVSS-CC product range.
The Everest-S trefoil range of cable cleats are designed for use with high voltage cable installations and are manufactured to suit a range of cable diameters, or to suit specific project parameters.

The Everest-S cleat is designed to secure the cables in a trefoil formation to a mounting surface, providing excellent axial and lateral retention. This variation securely fixes the cables to a support structure.

HVSS-CC-S cleats are fabricated in non-magnetic 316L stainless steel.

Flame retardant low smoke and fume fixed liners are fitted as standard, helping to:

• Restrain the cables within vertical applications.
• Provide a layer of protection to both the cable sheath and the cable cleat, during normal operation where thermal elongation of cable occurs.
• Protect the cable from chafing on any mounting surface due to differential movements, such as those found in marine and offshore applications.
• Assist in the extra protection of cables in the event of short circuit fault condition

Features

• Third party certification to IEC 61914
• 316L stainless steel
• Sunlight (UV) resistant
• Operating temperature -60°C to +90°C
• Excellent axial and lateral load retention
