Triton CDS (T3CDS) | Class I, Div 2 | AEx e, AEx d, AEx nR | Hazardous (Classified) Location Cable Gland For all types of Armored Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

Triton CDS Globally Approved, Hazardous (Classified) Location Cable Gland

  • Fully sequential, three step installation procedure
  • Reduces installation times, cost and risk
  • Direct and remote installation
  • Unique compensating displacement seal system (CDS)
  • Metal-to-metal installation every time regardless of cable diameter
  • Designed to reduce the effects of coldflow. See CMP Technical Doc TS002
  • Integral protected deluge seal
    Controlled outer load retention seal
    Unique OSTG prevents over tightening
  • Standard:
    -60˚C to +130˚C (-76˚F to +266˚F)
  • ThermEx:
    -20˚C to +200˚C (-4˚F to +392˚F)
  • Globally marked, UL, cCSAus, IECEx and ATEX
  • As standard in nickel plated brass with NPT thread form

† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armor (STA, DSTA) and Aluminum Strip Armor (ASA) but is also suitable for Single Wire Armor (SWA),
Aluminum Wire Armor (AWA) and Pliable Wire Armor (PWA) if the range is outside that of the Stepped Cone (W). Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are
for a double wire strand of braid armor cables. Tapes can also be doubled over. For cables that have only a single layer of armor such as SWA the clamping range should be used as shown in the table
below. Stepped (W) Cone is suitable for Single Wire Armor (SWA), or Aluminum Wire Armor (AWA) cables.

For under / oversized armor wires click here

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classification* Impact = Level 8, Cable Anchorage = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classification* Category B (Category A when used with braid, tape or pliable wire armor cables)
ATEX Certificate CML 18ATEX1326X
CML 18ATEX4318X
Code of Protection II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
II 3G, Ex nR IIC Gc
I M2, Ex db I Mb,
Ex eb I Mb
Compliance Standards EN60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0183X IECEx SIM 14.0007X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb, Ex eb I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate (20s16 - 90) 1310517
CSAus Code of Protection Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Type 4X; Oil Resistance II; Class I, Zone 1, AEx e II, AEx nR II
cCSA Code of Protection Class I, Div 2, Groups A, B, C, and D; Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Types 3, 4, and 4X; Ex d IIC, Ex e II, Ex nR II
Compliance Standards CSA-C22.2 No 0, 18, 25, 30, 94, 174, CSA C22.2 No 60079-0,1,7,15; ANSI/UL 514B, 50, 2225; UL60079-0,1,7,15
UL Certificate (20s16 - 90) E256367
Code of Protection Class I, Zone 1, AEx e II
Compliance Standards UL 50, 514B, 2225; EN 50014, 60529; CSA C22.2 No. 174
ECAS Certificate 20-02-05626
UkrSEPRO CЦ 19.0371X
EAC Certificate C-GB.AA87.B.00487 (excl. ThermEx)
Compliance Standards 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66, IP67, IP68
RETIE Approval Number 03866
CCOE / PESO (India) Certificate P444949
NEPSI Certificate GYJ18.1253X
INMETRO Certificate TÜV 11.0374X
Marine Approvals LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68***
NEMA Rating** Type 4X
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass, Copper Free (<0.4%) Aluminium, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Steel / Served Wire Armor (SWA), Aluminium Wire Armor (AWA), Pliable Wire Armor (PWA), Steel Tape Armor (STA), Aluminium Strip Armor (ASA), Screened Flexible (EMC) Wire Braid (e.g. CY/SY), Wire Braid Armor (e.g. SWB)
Armor Clamping Reversible Armor Cone & AnyWay Universal Clamping Ring
Sealing Technique CMP Inner Compensating Displacement Seal (CDS) and Outer Load Retention Seal
Sealing Area(s) Cable Inner Bedding & Outer Cable Sheath

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
**When CMP installation accessories are used. Refer to maintaining a seal for further information.
***IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request.

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference (*Nickel Plated Brass NPT) Available Entry Threads 'C'Minimum Thread Length 'E'Cable Bedding Diameter 'A'Overall Cable Diameter 'B'Armor RangeAcross Flats 'D'Across Corners 'D'Protrusion Length 'F'Combined Ordering Reference
(*Nickel Plated Brass NPT)		ShroudCable
Gland Weight (Ozs)
SizeTypeOrdering SuffixNPTNPT
(Option)		Metric
(Option)		MinMaxMinMaxMinMaxMinMaxMaxMaxSize
20S16T3CDS1RA531½"¾"M200.780.120.340.240.520.010.040.030.050.941.043.1020S16PVC367.06
20ST3CDS1RA531½"¾"M200.780.240.460.370.630.010.040.030.050.941.043.1020SPVC366.91
20T3CDS1RA531½"¾"M200.780.260.550.490.820.020.040.030.051.201.323.0020PVC069.77
25ST3CDS1RA532¾"1"M250.800.440.780.550.870.020.050.050.061.481.633.4925SPVC0915.34
25T3CDS1RA532¾"1"M250.800.440.780.721.030.020.050.050.061.481.633.4925PVC0915.34
32T3CDS1RA5331"1 ¼"M320.980.671.030.931.330.020.050.060.081.811.993.5732PVC1122.33
40T3CDS1RA5341 ¼"1 ½"M401.010.871.261.101.590.020.060.060.082.172.383.6740PVC1531.92
50ST3CDS1RA5351 ½"2"M501.031.161.501.391.840.020.060.080.102.362.603.9650SPVC1839.65
50T3CDS1RA5362"2 ½"M501.061.401.731.592.090.020.060.080.102.763.044.1650PVC2156.58
63ST3CDS1RA5362"2 ½"M631.061.581.981.802.340.020.060.080.102.953.254.0363SPVC2361.10
63T3CDS1RA5372 ½"3"M631.571.862.202.152.590.020.060.080.103.153.464.1563PVC2562.72
75ST3CDS1RA5372 ½"3"M751.572.082.442.322.830.020.060.080.103.543.904.3575SPVC2890.70
75T3CDS1RA5383"3 ½"M751.632.332.672.633.090.020.060.100.123.944.334.7375PVC30117.93
90T3CDS1RA5393 ½"4"M901.692.623.093.003.560.030.060.120.164.534.985.4790PVC32171.73
100T3CDS1RA5393 ½"4"M1001.692.993.583.393.990.030.060.120.165.005.505.05100LSF33175.28
115T3CDS1RA53104"5"M1151.733.393.854.004.340.030.060.120.165.435.986.35115LSF34272.35
130T3CDS1RA53115"-M1301.843.824.524.344.850.030.060.120.166.106.716.82130LSF35344.37
Dimensions displayed in inches unless otherwise stated

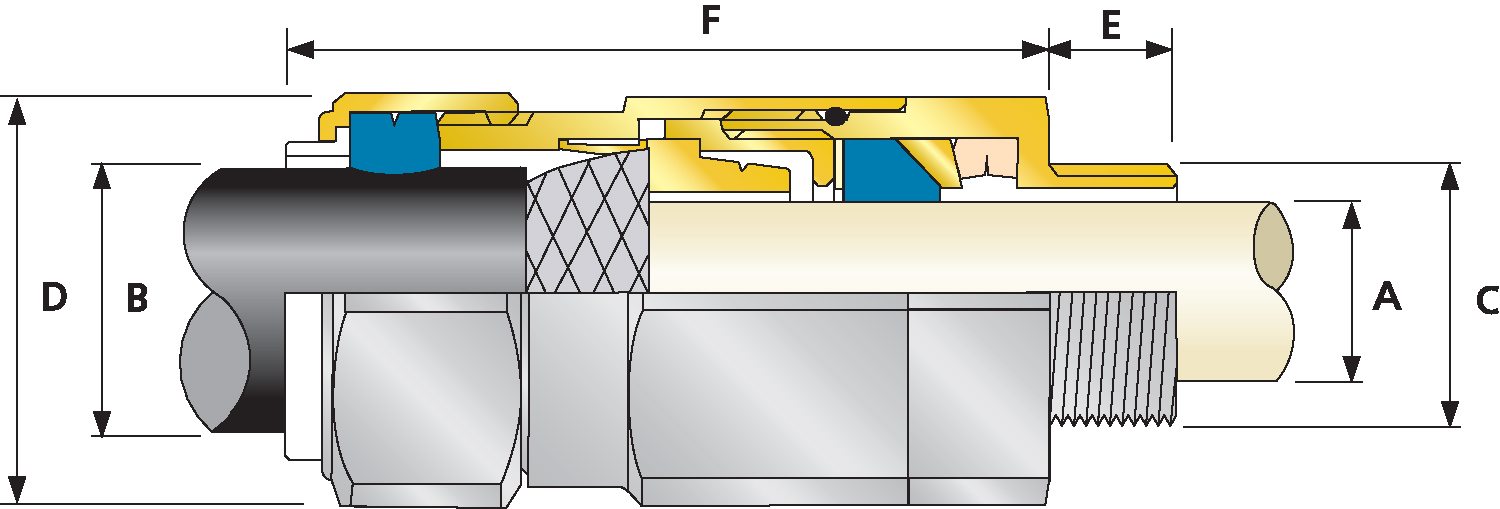

Technical Illustration
