PXSS2KREX | Class I, Div 1 & 2 | AEx d, AEx e, AEx t, AEx nR | Hazardous (Classified) Location Barrier Cable Gland For all types of Unarmored Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

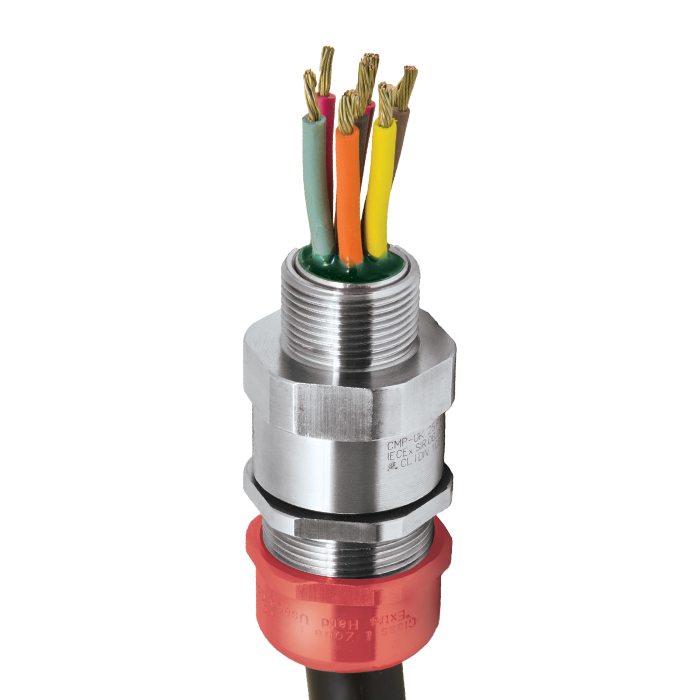

Globally Approved, Hazardous (Classified) Location Barrier Cable Gland

Supplied in Pack with RapidEx Resin

  • RapidEx liquid pour sealing system reduces installation time
  • Direct and remote installation
  • Superior levels of cable retention
  • Displacement type environmental seal
  • Deluge protected
  • Disconnectable, union feature design
  • -60°C to +85°C (-76˚F to +185˚F)
  • Globally marked, cULus, cCSAus, IECEx and ATEX
  • As standard in nickel plated brass with NPT thread form
  • RapidEx liquid barrier resin seals around internal cable cores after removing any cable inner sheath/ bedding; completely eliminating any risk of coldflow

Patent granted: ES2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, GB 2485114, SG 178839, US 8872027, US 9484133, US 9774178, MY 153843, US 10193321, US 1034078

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classification* Impact = Level 8, Cable Anchorage = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate CML 18ATEX1325X, CML 18ATEX4317X
Code of Protection II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
II 3G, Ex nR IIC Gc
I M2 Ex db I Mb*, Ex eb I Mb*
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0182X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb*, Ex eb I Mb*
Compliance Standards IEC 60079-0,1,7,15,31
* Per ATEX CML 18ATEX1325X and IECEx CML 18.0182X, aluminum alloys are not permitted in Group I mining applications.
cCSAus Certificate (20s16 - 90) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,174,94, CAN/CSA-60079-0,1,7,15,31, CAN/CSA-E6124111 Part 11, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079
cULus Certificate E201187,E253914,E161256
Code of Protection Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups F and G; Class I, Zone 1, AEx d IIC, AEx e II
Compliance Standards UL 2225, UL 514B, UL 60079-0, UL 60079-7, CSA C22.2 No. 174
ECAS Certificate 20-02-05624
UkrSEPRO CЦ 19.0371X
EAC Certificate C-GB.AA87.B.00487
Code of Protection 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66, IP67, and IP68
NEPSI Certificate GYJ18.1252X
RETIE Approval Number 03866
CCOE / PESO (India) Certificate P444949
Marine Approvals LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68****
NEMA Rating** Type 4X
Deluge Protection Compliance DTS01 : 91
Cable Type Unarmored***
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Barrier Compound
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) RapidEx Resin Barrier & Cable Outer Sheath
Cable Gland Material Electroless Nickel Plated Brass, Copper Free (<0.4%) Aluminum, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
***Where the cable is permitted by code (NEC and/or CEC)
****IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference (*Nickel Plated Brass NPT) Available Entry Threads 'C'
(Alternative Metric Thread Lengths Available)		Number of CoresDiameter Over Conductors
'A'		Cable
Bedding Diameter
'G'		Overall Cable Diameter 'B'Across Flats 'D'Across Corners 'D'Protrusion Length 'F'ShroudApprox Weight Aluminum (oz)
SizeTypeOrdering SuffixNPTNPT
(Option)		Metric
(Option)		Thread Length (NPT) 'E'MaxMaxMinMaxMaxMax
20S16PXSS2KREX1EX531½"¾"M200.78210.340.340.120.341.181.302.09PVC067.06
20SPXSS2KREX1EX531½"¾"M200.78210.460.460.240.461.181.302.09PVC067.06
20PXSS2KREX1EX531½"¾"M200.78210.500.510.260.551.181.302.13PVC067.06
20LPXSS2KREX1EX531½"¾"M200.78210.500.510.410.631.181.302.13PVC067.06
25PXSS2KREX1EX532¾"1"M250.80300.690.700.440.791.421.562.36PVC0911.64
32PXSS2KREX1EX5331"1 ¼"M320.98500.930.940.671.041.611.782.41PVC1013.76
32LPXSS2KREX1EX5331"1 ¼"M320.98500.930.940.791.081.611.782.41PVC1013.76
40PXSS2KREX1EX5341 ¼"1 ½"M401.01591.181.190.871.261.972.172.46PVC1319.75
50SPXSS2KREX1EX5351 ½"2"M501.03891.441.451.161.502.172.382.57PVC1523.28
50PXSS2KREX1EX5362"2 ½"M501.061151.611.631.401.732.763.032.66PVC2125.75
63SPXSS2KREX1EX5362"2 ½"M631.061151.891.911.581.972.763.032.80PVC2137.74
63PXSS2KREX1EX5372 ½"3"M631.571152.112.131.862.203.153.472.77PVC2537.39
75SPXSS2KREX1EX5372 ½"3"M751.571402.362.372.082.443.153.472.97PVC2545.86
75PXSS2KREX1EX5383"3 ½"M751.631402.532.532.332.673.944.332.95PVC3045.86
90PXSS2KREX1EX5393 ½"4"M901.691402.962.982.623.134.254.683.73PVC31106.53
100PXSS2KREX1EX53103 ½"4"M1001.692003.293.382.993.584.845.333.40LSF33141.10
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1”
For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32PXSS2KREX1EX534 = Nickel Plated Brass 1 ¼” NPT, 25PXSS2KREX1EX432 = Stainless Steel ¾” NPT, 20PXSS2KREX1EX5 Nickel Plated Brass M20
Dimensions displayed in inches unless otherwise stated

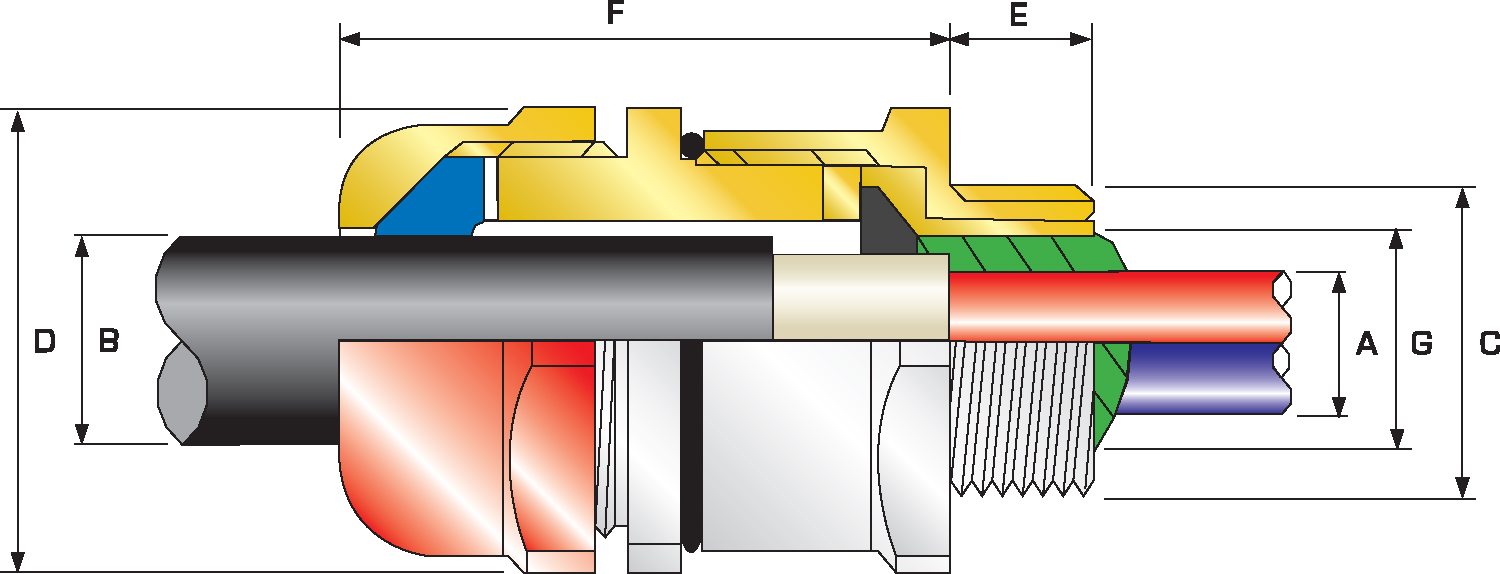

Technical Illustration
