A2F100 | Ex eb, Ex db, Ex nR, Ex ta | Hazardous Location Cable Gland For all types of Unarmored & Braided Armor Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

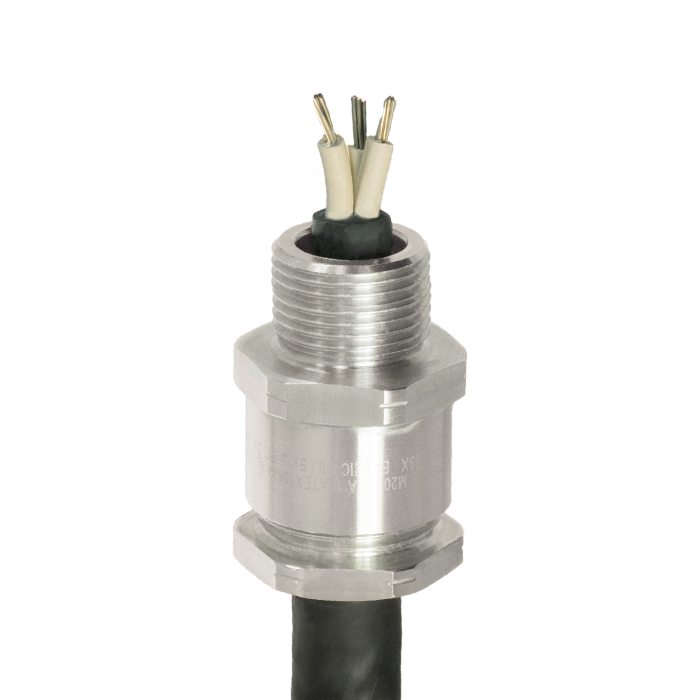

Globally Approved, Hazardous (Classified) Location Cable Gland

  • Complies 100% with IEC 60079-0 cable retention requirements
  • No ‘special conditions’ for safe use
  • No external cable clamping required by certification
  • Displacement type flameproof seal
  • Deluge protected
  • -60˚C to +130˚C ( -76˚F to + 266˚F)
  • Globally marked, IECEx, ATEX, cULus and cCSAus
  • Ingress protection disc available on request
Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classification* Impact = Level 8, Cable Anchorage = Type B
Enclosure Protection IK10 to IEC 62262 (20 joules)
ATEX Certificate CML 18ATEX1321X, CML 18ATEX4313X
Code of Protection II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0179X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,15,31
CSA Certificate 1211841
Code of Protection Ex d IIC, Ex e II, Ex nR II; Encl. Type 4x
Compliance Standards C22.2 No 0,0.4,94,174, CAN/CSA-60079-0,1,7,15
ECAS Certificate 20-02-05632
EAC Certificate TC RU C-GB.AA87.B.00487
Code of Protection 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66
INMETRO Approval TÜV 12.0619X
CCOE / PESO (India) Certificate P444949
Marine Approvals LRS: LR22320739TA, DNV: TAE00000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68***
NEMA Rating** NEMA 4X
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Tray Cable and Flexible Cord, Unarmoured and Braided IEC cables
Sealing Technique CMP Displacement Seal
UL Certificate (Sizes 16 - 75) 80036227
UL Code of Protection*** Class I Zone 1 AEx eb IIC Gb; Zone 20 AEx ta IIIC Da; Type 4X; Type 6; Type 6P; IP66; IP67;
IP68 ; Oil resistant II
Compliance Standards UL 2225; UL514B; CSA C22.2 No. 60079-0,7,15,31; CSA C22.2 No. 18.3
cCSAus Certificate (Sizes 16-75) 80036227
CSAus Code of Protection Class I Zone 1 AEx eb IIC Gb; Zone 20 AEx ta IIIC Da; Type 4X; Type 6; Type 6P; IP66; IP67;
IP68 ; Oil resistant II
cCSA Code of Protection Class I, Division 2 Groups A, B, C and D; Class II Division 2 Groups F, G; Class III Division 2
Ex db IIC Gb; Ex eb IIC Gb; Ex nR IIC Gc; Ex ta IIIC Da, Type 4X; Type 6; Type 6P; IP66; IP67;
IP68; Oil resistant II
Compliance Standards CAN/CSA C22.2 No. 0, 18.3, 94.2, 174; CAN/CSA C22.2 No. 60079-0,1,7,15,31;
UL 514B, 50E, 2225; UL 60079-0
CCC Certificate 2020322313003190

Note: *Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

COMBINED ORDERING REFERENCE (NICKEL-PLATED BRASS NPT)AVAILABLE ENTRY THREADS ‘C’OVERALL CABLE DIAMETER 'A'ACROSS FLATS 'D'ACROSS CORNERS 'D'PROTRUSION LENGTH 'F'SHROUDCABLE GLAND WEIGHT
(OZ)
SIZETYPEORDERING SUFFIXNPTTHREAD LENGTH ‘E’MINMAXMAXMAX
20S16A2F1001RA5311⁄2 ”0.780.130.310.941.041.2PVC042.82
20SA2F1001RA5311⁄2 ”0.780.260.440.941.041.26PVC042.47
20A2F1001RA5311⁄2 ”0.780.280.531.061.171.41PVC053.17
20LA2F1001RA5311⁄2 ”0.780.340.551.061.171.35PVC053.17
25A2F1001RA5323⁄4”0.80.450.771.421.561.59PVC095.64
25LA2F1001RA5323⁄4”0.80.550.791.421.561.57PVC095.64
32A2F1001RA5331”0.980.7511.611.781.52PVC106.35
*32LA2F1001RA5331”0.980.81.041.611.781.4PVC106.35
40A2F1001RA5341 1⁄4”1.010.981.271.972.171.53PVC138.82
50SA2F1001RA5351 1⁄2”1.031.221.52.172.381.63PVC1511.64
50A2F1001RA5362”1.061.41.732.552.81.8PVC1912.35
63SA2F1001RA5362”1.061.631.962.783.061.7PVC2119.75
63A2F1001RA5372 1⁄2”1.571.92.163.113.421.72PVC2419.4
75SA2F1001RA5372 1⁄2”1.572.132.443.313.641.79PVC2425.75
75A2F1001RA5383”1.632.412.673.944.331.93PVC3020.46
*90A2F1001RA53104”1.732.623.154.855.332.6LSF3362.79
*100A2F1001RA53114 1⁄2”1.732.993.55.255.782.84LSF3496.65
*115A2F1001RA53114 1⁄2”1.733.393.855.255.782.67LSF3496.65
*130A2F1001RA53125”1.843.824.5266.63.19LSF35143.57
For material options add the following suffix to the ordering reference; Brass (no suffix required); Nickel Plated Brass ‘5’; 316 Grade Stainless Steel ‘4’; Copper Free Aluminium ‘1’
Examples: 32A2F1001RA534 = Nickel Plated Brass 1 ¼” NPT, 50SA2F1001RA035 = Brass 1 ½” NPT, 25A2F1001RA432 = Stainless Steel ¾” NPT
Dimensions are displayed in inches unless otherwise stated
*Sizes 32L, 90, 100, 115, 130 do not hold North American approval

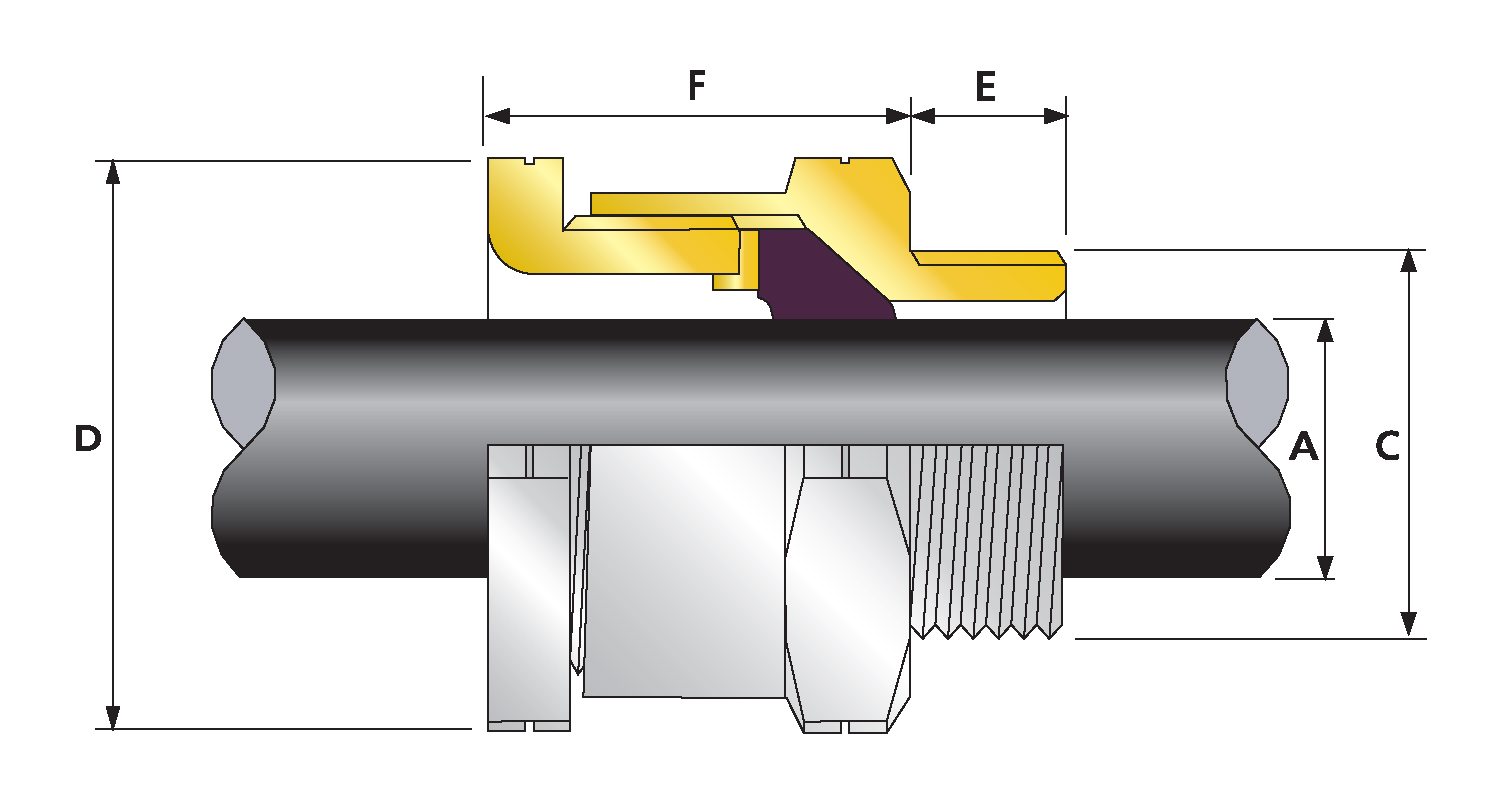

Technical Illustration
