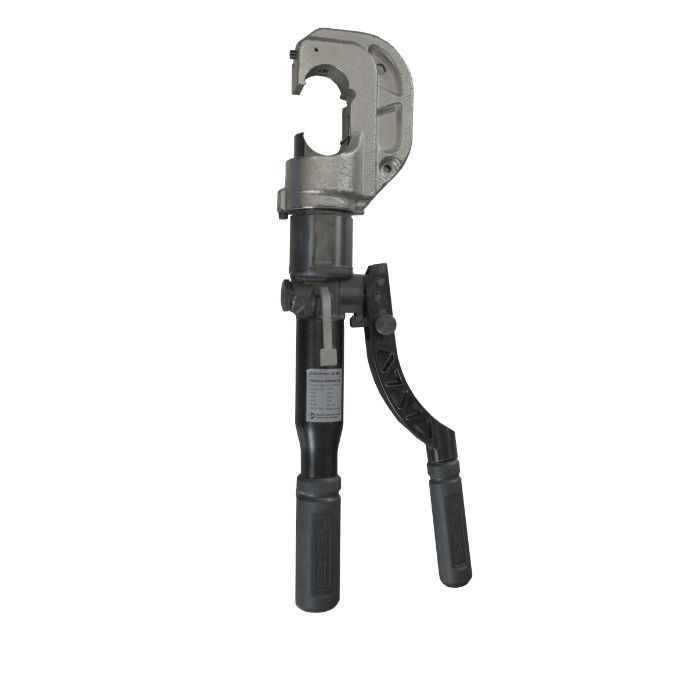

MH120 Manual Hydraulic Crimping Tool

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

This versatile manual hydraulic crimping tool is designed for crimping cable lugs ranging from 10 mm² to 400 mm² (#8 AWG to 750 kcmil) and is compatible with CMP BH & BU crimping dies.

It features 360° head rotation for easy manoeuvrability and a double-speed action for fast die advancement during operation. A built-in safety valve ensures user safety by bypassing the oil supply when maximum pressure is reached.

Full CMP die sets available upon request; contact CMP for more information.

Features

  • Wide crimping range: Copper cables 10 mm² to 400 mm²; #8 AWG to 750 kcmil
  • Compatible with CMP BH & BU crimping dies
  • 360° head rotation for ease of operation
  • Double speed action: fast advancing speed for die approaching connector
  • Built-in safety valve will by-pass the oil supply when maximum pressure is reached
  • Can be sold with full CMP die sets on request; contact CMP Products for more information
ETIM Classification EC000168
Crimping Force (kN) 120
Stroke Length (mm) 42
Cable Size Range (mm2) (AWG/kcmil/MCM) 10 - 400
8 - 750
Length (mm)(Inches) 540
21.26
Weight (kg)(lb) 6.3
13.89
Container Type Steel Case
Compatible Crimping Die BH,BU
Operating Temperature Range (oC) -10 to +60

Ordering information

Ordering CodeDie SetScope of Supply
CMP-MH120-B-Crimping tool - bare unit, hard plastic carrying case, carrying sling.
CMP-MH120-HSBH-SCrimping tool - bare unit, hard plastic carrying case, carrying sling, crimping die set.
CMP-MH120-HHBH-H
CMP-MH120-B-UBU
