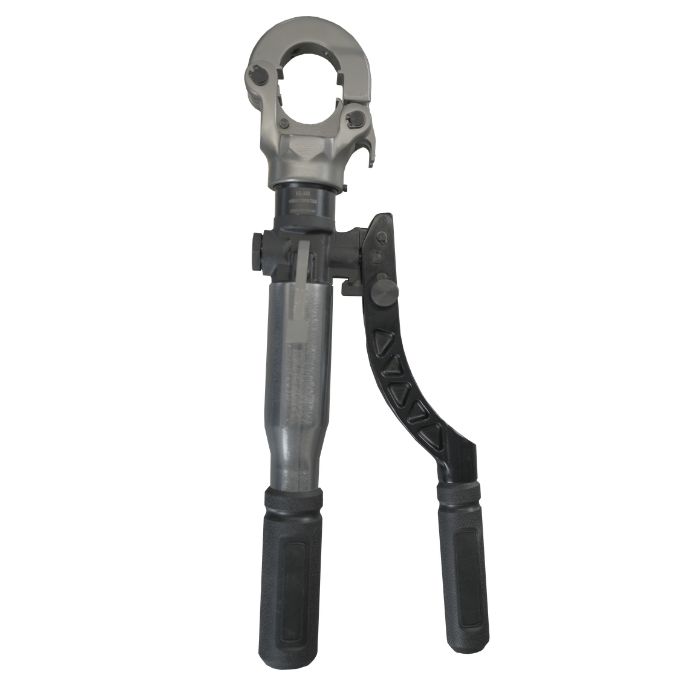

MH060 Manual Hydraulic Crimping Tool

This lightweight manual hydraulic crimping tool is ideal for crimping cable lugs ranging from 6 mm² to 300 mm² (#8 AWG to 650 kcmil) and is compatible with CMP SBH & SBU crimping dies.

With its 350° rotating head for ease of use and a double-speed action for quick die advancement, it offers an excellent weight-to-capacity ratio. The built-in safety valve automatically by passes the oil supply when maximum pressure is reached, ensuring safety during operation.

Full CMP die sets are available contact CMP Products for more information.

Features

• Wide crimping range: Copper cables – #8 AWG to 650 kcmil
• Compatible with CMP SBH & SBU crimping dies
• Very light head, excellent weight to capacity ratio
• 350° head rotation
• Double speed action: for fast die advancing speed
• Built-in safety valve will by-pass the oil supply when maximum pressure is reached
• Can be sold with full CMP die sets on request; contact CMP Products for more information
