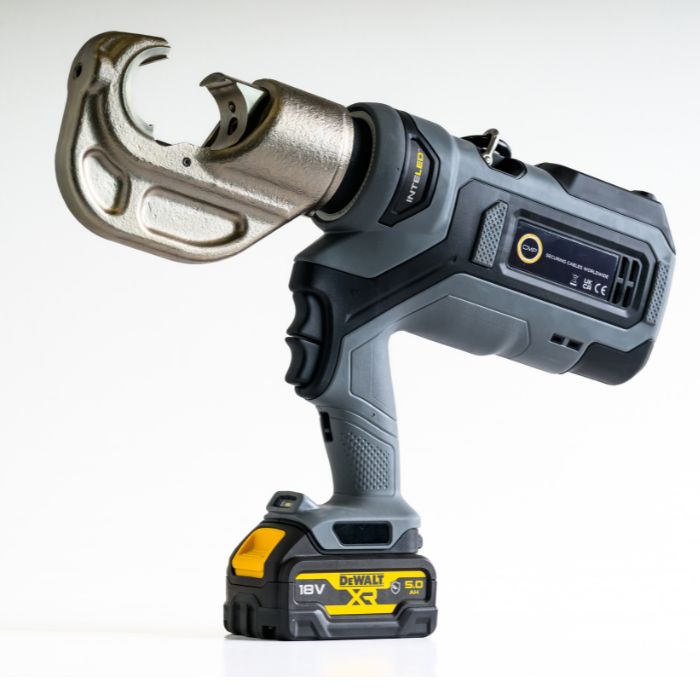

BHP130 Pistol Battery-Operated Hydraulic Crimping Tool

This versatile hydraulic battery-operated crimping tool is designed for crimping cable lugs from 10 mm² to 400 mm² (#8 AWG to 750 kcmil) and is compatible with CMP BH & BU crimping dies. Compatible with DEWALT 18V Li-ion batteries, it features a 270° head rotation for enhanced accessibility in confined spaces.

INTELED illumination technology provides instant visual feedback oncrimp quality to the installer, ensuring a reliable crimp every time, whilstilluminating the work area.

The robust plastic housing includes a non-slip coating for better grip and a dual rocking trigger system. A handling ring for carrying straps and built-in LED lighting enhance usability.

A USB PC connection is provided, which enables crimping data analysis as well as information on tool calibration and preventative maintenance.

Full CMP die sets are available; contact CMP Products for details.

Features

• Wide crimping range: Copper cables 10 mm² to 400 mm²; #8 AWG to 750 kcmil
• Compatible with CMP BH & BU 130 kN crimping dies
• Compatible with DEWALT 18V Li-ion batteries
• 270° head rotation
• INTELED crimp guidance indicator enables easy identification of correct / incorrect crimps
• Robust plastic housing with non-slip coating
• Dual rocking trigger system
• Handling ring for carrying strap or safety cable
• In-built LED lighting to illuminate work area
• USB connection with dedicated software for analysis & preventative maintenance
• Balanced centre of gravity for easier handling during operation
• Can be sold with full CMP die sets on request; contact CMP Products for more information
