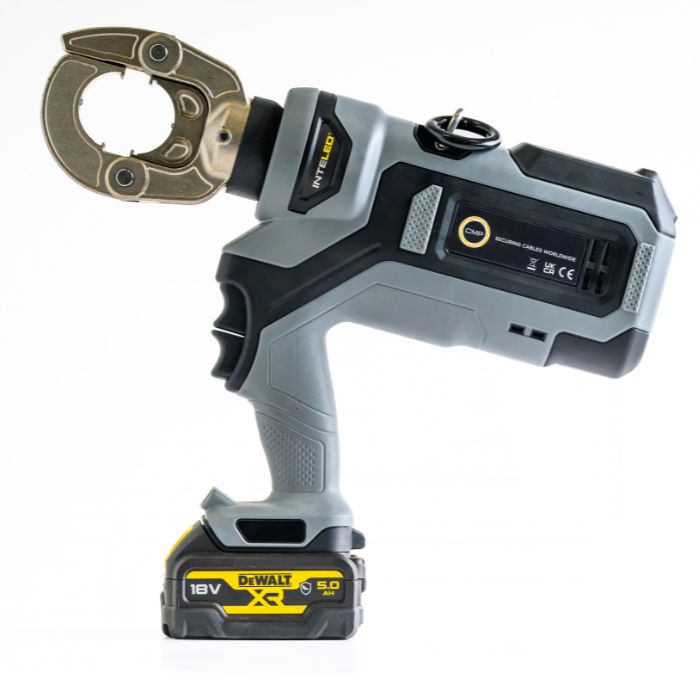

BHP062 Pistol Battery-Operated Hydraulic Crimping Tool

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

This lightweight hydraulic battery-operated crimping tool is engineered for crimping cable lugs ranging from 6 mm² to 300 mm² (#8 AWG to 600 kcmil) and is compatible with CMP SBH & SBU crimping dies. Compatible with DEWALT 18V Li-ion batteries, it features a 270° head rotation for enhanced accessibility.

The INTELED crimp guidance indicator simplifies the identification of correct or incorrect crimps, ensuring precision in every application. Its robust plastic housing includes a non-slip coating for better grip. A dual rocking trigger system, handling ring for carrying straps, and built-in LED lighting enhance usability.

Additionally, it has a USB connection for dedicated software, enabling analysis and preventative maintenance.

Full CMP die sets are available upon request; contact CMP Products for details.

Features

  • Wide crimping range: Copper cables 6 mm² to 300 mm²; #8 AWG to 600 kcmil
  • Compatible with CMP SBH & SBU crimping dies
  • Very light head; excellent weight to capacity ratio
  • Compatible with DEWALT 18V Li-ion batteries
  • 270° head rotation
  • INTELED crimp guidance indicator enables easy identification of correct / incorrect crimps
  • Robust plastic housing with non-slip coating
  • Dual rocking trigger system
  • Handling ring for carrying strap or safety cable
  • In-built LED lighting to illuminate work area
  • USB connection with dedicated software for analysis & preventative maintenance.
ETIM Classification EC000168
Force (kN) 62
Stroke Length (mm) 13
Cable Size Range (mm2) (AWG/kcmil/MCM) 6-300 (mm2)
8-600 (AWG/kcmil/MCM)
Dimensions LxWxH (mm) LxWxH (Inches) 395 x 75 x 325 (mm)
14 x 3 x 12.8 (inches)
Weight (Including Battery) (kg) (lb) 4.9 (kg)
10.8 (lb)
Weight (bare unit) (kg) (lb) 4.28 (kg)
9.44 (lb)
Number of Crimps per Battery Charge 340 - Based on 185 mm²
Crimp Cycle Time (s) 4-6
Battery Capacity (Ah) 5
Battery Voltage (V) 18
Battery Charging Time (mins) 75
Container Type Hard Plastic Tool Case
Compatible Crimping Die SBH & SBU 62 kN
Operating Temperature Range (oC) -10 to +60

Ordering information

Ordering CodePlugDie SetScope of Supply
CMP-BHP062-B--Crimping tool - bare unit, hard plastic carrying case, carrying sling.
CMP-BHP062-B-HH-SBH-HCrimping tool - bare unit, hard plastic carrying case, carrying sling, crimping die set.
CMP-BHP062-B-HS-SBH-S
CMP-BHP062-B-U-SBU
CMP-BHP062-UKUK-Crimping tool, 2x DEWALT 5Ah 18V Li-ion batteries,
1x DEWALT fast battery charger, hard plastic carrying case, carrying sling.
CMP-BHP062-EUEU-
CMP-BHP062-USUS-
CMP-BHP062-AUAUS-
CMP-BHP062-UK-HHUKSBH-HCrimping tool, 2x DEWALT 5Ah 18V Li-ion batteries,
1x DEWALT fast battery charger, hard plastic carrying case, carrying sling, crimping die set.
CMP-BHP062-UK-HSSBH-S
CMP-BHP062-UK-USBU
CMP-BHP062-EU-HHEUSBH-H
CMP-BHP062-EU-HSSBH-S
CMP-BHP062-EU-USBU
CMP-BHP062-US-HHUSSBH-H
CMP-BHP062-US-HSSBH-S
CMP-BHP062-US-USBU
CMP-BHP062-AU-HHAUSBH-H
CMP-BHP062-AU-HSSBH-S
CMP-BHP062-AU-USBU
