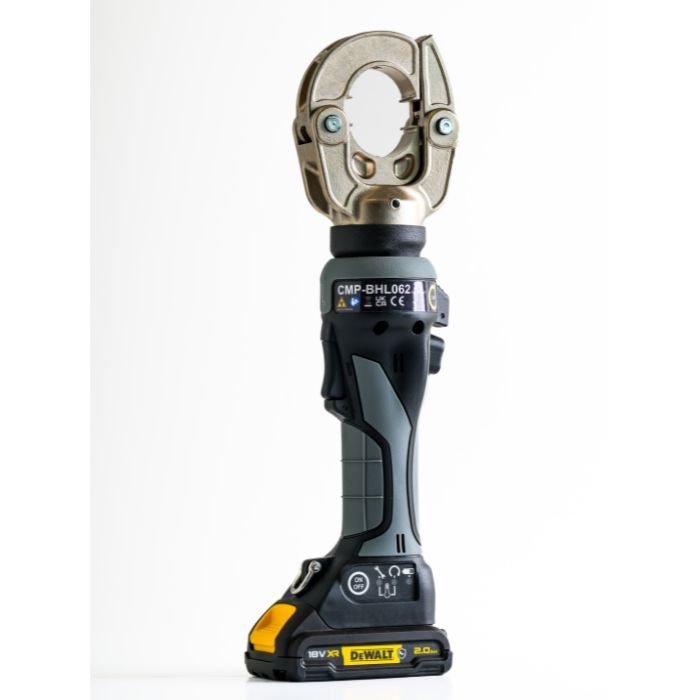

BHL062 Inline Battery-Operated Hydraulic Crimping Tool

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

This lightweight hydraulic battery-operated crimping tool is perfect for crimping cable lugs ranging from 6 mm² to 300 mm² (#8 AWG to 600 kcmil) and is compatible with CMP SBH & SBU crimping dies. Compatible with DEWALT 18V Li-ion batteries, it features 180° head rotation for enhanced
accessibility.

The robust plastic housing has a non-slip coating, while an LED panel displays battery charge, cycle compliance, and maintenance alerts. Additional features include a handling ring for a carrying strap or safety cable, built-in LED lighting for better visibility.

Additionally, it has a USB connection for dedicated software, enabling analysis and preventative maintenance. Full CMP die sets are available upon request; contact CMP Products for details.

Features

  • Wide crimping range: Copper cables 6 mm² to 300 mm²; #8 AWG to 600 kcmil
  • Compatible with CMP SBH & SBU crimping dies
  • Very light head; excellent weight to capacity ratio
  • Compatible with DEWALT 18V Li-ion batteries- 180° head rotation for ease of operation
  • LED panel indicates: battery charge level, cycle compliance and maintenance
  • Robust plastic housing with non-slip coating
  • Handling ring for carrying strap or safety cable
  • In-built LED lighting to illuminate work area
  • On/off button with automatic switching to standby for battery saving
  • USB connection with dedicated software for analysis & preventative maintenance
ETIM Classification EC000168
Force (kN) 62
Stroke Length (mm) 13
Cable Size Range (mm2) (AWG/kcmil/MCM) 6-300 (mm2)
8-600 (AWG/kcmil/MCM)
Dimensions LxWxH (mm) LxWxH (Inches) 395 x 75 x 128
15.55 x 2.95 x 5.04
Weight (Including Battery) (kg) (lb) 2.89 (kg)
6.37 (lb)
Number of Crimps per Battery Charge 220 - Based on 185 mm²
Crimp Cycle Time (s) 3-5
Battery Capacity (Ah) 2
Battery Voltage (V) 18
Battery Charging Time (mins) 30
Container Type Hard Plastic Tool Case
Compatible Crimping Die SBH & SBU
Operating Temperature Range (oC) -10 to +60

Ordering information

Ordering CodePlugDie SetScope of Supply
CMP-BHL062-B--Crimping tool - bare unit, hard plastic carrying case, carrying sling.
CMP-BHL062-B-HH-SBH-HCrimping tool - bare unit, hard plastic carrying case, carrying sling, crimping die set.
CMP-BHL062-B-HS-SBH-S
CMP-BHL062-B-U-SBU
CMP-BHL062-UKUK-Crimping tool, 2x DEWALT 2Ah 18V Li-Ion batteries,
1x DEWALT fast battery charger, hard plastic carrying case, carrying sling.
CMP-BHL062-EUEU-
CMP-BHL062-USUS-
CMP-BHL062-AUAUS-
CMP-BHL062-UK-HHUKSBH-HCrimping tool, 2x DEWALT 2Ah 18V Li-Ion batteries,
1x DEWALT fast battery charger, hard plastic carrying case, carrying sling, crimping die set.
CMP-BHL062-UK-HSSBH-S
CMP-BHL062-UK-USBU
CMP-BHL062-EU-HHEUSBH-H
CMP-BHL062-EU-HSSBH-S
CMP-BHL062-EU-USBU
CMP-BHL062-US-HHUSSBH-H
CMP-BHL062-US-HSSBH-S
CMP-BHL062-US-USBU
CMP-BHL062-AU-HHAUSSBH-H
CMP-BHL062-AU-HSSBH-S
CMP-BHL062-AU-USBU
