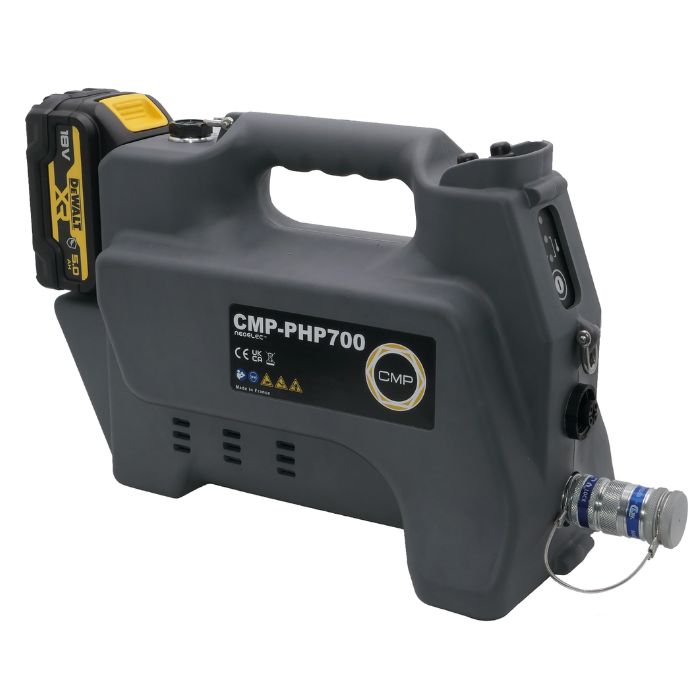

PHP700 Battery Actuated Hydraulic Pump

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

Introducing the ultra-light and ergonomic battery-operated hydraulic pump, designed for optimal performance and ease of use. It has a durable, robust bodyshell and the stable base with balanced centre of gravity ensures superior handling.

Featuring advanced electronic and mechanical protection, it safeguards against overpressure and overheating. Operating at an impressive 700 bar (10,000 psi), this pump delivers powerful performance, making it ideal for demanding tasks in any environment.

Features

  • Light and well balanced for ergonomic handling
  • Strong bodyshell and stable base
  • Electronical and mechanical protection from overpressure and overheating
  • High performance motor ensuring maximum operating speed
  • Quick motor stop function ensuring safety and accuracy for the operator
  • 2 hydraulic pump stages with increased speed of advance
ETIM Classification EC001185
Max Operating Pressure (bar/psi) 700 / 10,000
Dimensions LxWxH (mm) LxWxH (Inches) 330 X 250 X 160
13.0 X 9.4 X 6.3
Weight (Including Battery) (kg) (lb) 5.67
12.5
Weight (bare unit) (kg) (lb) 5.05
11.1
Battery Capacity (Ah) 5
Battery Voltage (V) 18
Battery Charging Time (mins) 75
Container Type Hard Plastic Tool Case
Operating Temperature Range (°C) -10 to +60
Hight Pressure Flow Rate (L/min) 0.15

Ordering information

Ordering CodePlugHose TypeScope of Supply
CMP-PHP700-B--Portable Battery Hydraulic Pump 700 bar - Bare Unit, Large Tough System 2.0 Case, Quick nozzle 1/4 BSP Female, Hydraulic Oil, Remote Control
CMP-PHP700-B-H1-H1Portable Battery Hydraulic Pump 700 bar - Bare Unit, Large Tough System 2.0 Case, Quick nozzle 1/4 BSP Female, Hydraulic Oil, Remote Control, Hydraulic Hose
CMP-PHP700-B-H2-H2
CMP-PHP700-B-H3-H3
CMP-PHP700-B-H4-H4
CMP-PHP700-B-H5-H5
CMP-PHP700-B-H6-H6
CMP-PHP700-UKUK-Portable Battery Hydraulic Pump 700 bar - Bare Unit, 2x 5aH DEWALT Battery - DEWALT Battery Charger, Large Tough System 2.0 Case, Quick nozzle 1/4 BSP Female, Hydraulic Oil, Remote Control.
CMP-PHP700-EUEU-
CMP-PHP700-USUS-
CMP-PHP700-AUAUS-
CMP-PHP700-UK-H1UKH1Portable Battery Hydraulic Pump 700 bar - Bare Unit, 2x 5aH DEWALT Battery - DEWALT Battery Charger, Large Tough System 2.0 Case, Quick nozzle 1/4 BSP Female, Hydraulic Oil, Remote Control, Hydraulic Hose
CMP-PHP700-UK-H2H2
CMP-PHP700-UK-H3H3
CMP-PHP700-UK-H4H4
CMP-PHP700-UK-H5H5
CMP-PHP700-UK-H6H6
CMP-PHP700-EU-H1EUH1
CMP-PHP700-EU-H2H2
CMP-PHP700-EU-H3H3
CMP-PHP700-EU-H4H4
CMP-PHP700-EU-H5H5
CMP-PHP700-EU-H6H6
CMP-PHP700-US-H1USH1
CMP-PHP700-US-H2H2
CMP-PHP700-US-H3H3
CMP-PHP700-US-H4H4
CMP-PHP700-US-H5H5
CMP-PHP700-US-H6H6
CMP-PHP700-AU-H1AUSH1
CMP-PHP700-AU-H2H2
CMP-PHP700-AU-H3H3
CMP-PHP700-AU-H4H4
CMP-PHP700-AU-H5H5
CMP-PHP700-AU-H6H6
