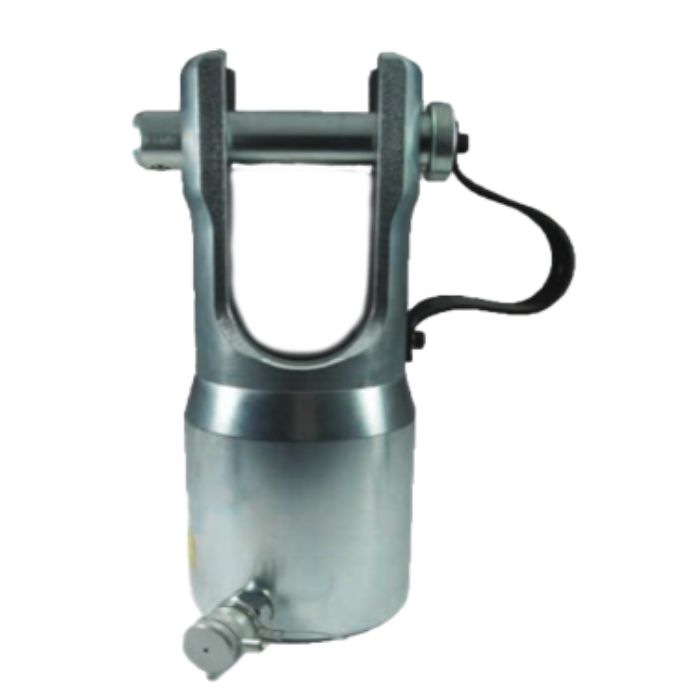

HCH450 Hydraulic Crimping Head

This hydraulic crimping head is built for crimping large cable lugs (300 mm² to 1000 mm²) in medium-voltage (MV) applications. It is compatible with CMP 450H crimping dies and features a robust design with a captive pin for locking the upper die securely.

A side hydraulic connection allows stable operation on flat surfaces. The self-centering lower die ensures precise alignment during operation. Requires a hydraulic pump achieving 700 bar/10,000 psi to be actuated, compatible with CMP-PHP700.

Features

• Cimping range: Copper cables 300 mm² 1000 mm²
• Compatible with CMP 450H 450 kN crimping dies
• Robust design, for use on large cables MV and HV applications
• Captive pin for locking the upper die
• Side hydraulic connection allows the head to be placed firmly on a workbench or flat surface during operation
• Self centering lower die centered inside the head
• Actuated by a 700 bar battery-operated 18V Li-ion hydraulic power pack (See CMP-PHP700)
• Option to be sold with or without CMP dies, contact CMP Products for more information-
• Requires hydraulic pump CMP-PHP700 to be actuated
