HCH250 Hydraulic Crimping Head

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

No thanks, I'd just like to Download the datasheet.

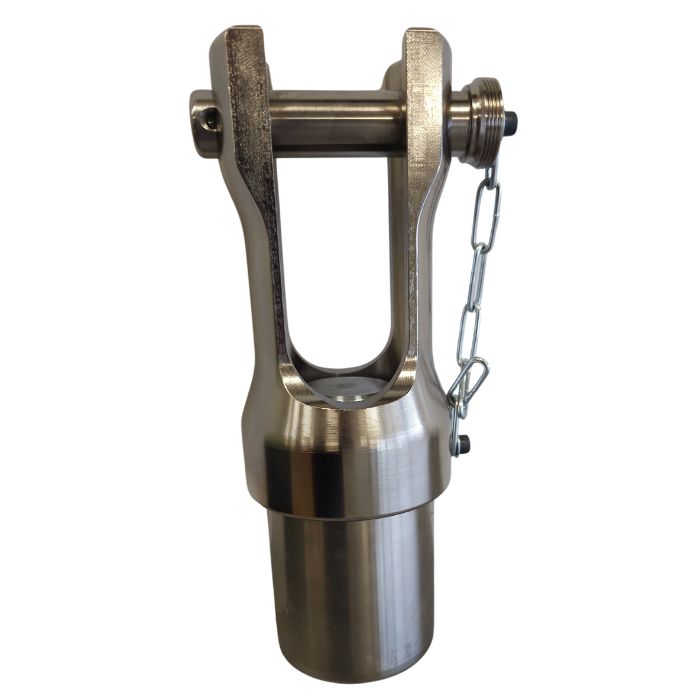

This relatively lightweight hydraulic crimping head is ideal for crimping cable lugs ranging from 240 mm² to 630 mm² in medium-voltage (MV) applications. It is compatible with CMP 250H crimping dies and features a captive pin for locking the upper die securely.

This crimping head offers a great weight-to-capacity ratio while maintaining a robust design. Operation of this crimping head requires a hydraulic pump achieving 700 bar/10,000psi, such as CMP-PHP700.

Features

  • Crimping range: Copper cables 240 mm² to 630 mm²
  • Compatible with CMP 250H crimping dies; dies sold seperately
  • Lightweight; great weight to capacity ratio
  • Robust design, for use on large cables
  • Captive pin for locking the upper die
  • Actuated by a 700 bar battery-operated 18V Li-ion hydraulic power pack (See CMP-PHP700)
  • Option to be sold with or without CMP dies, contact CMP Products for more information
ETIM Classification EC000168
Crimping Force (kN) 250
Stroke Length (mm) 28
Cable Size Range (mm²) 240 - 630
Dimensions LxWxH (mm) LxWxH (Inches) 287 x 100 x 130
11.3 x 3.93 x 5.12
Weight (kg)(lb) 6.8
14.99
Container Type Hard Plastic Tool Case
Compatible Crimping Die 250H
Max Operating Pressure (bar/psi) 700 / 10,000
Hydraulic Connection ¼” Quick Hydraulic Coupling
Operating Temperature Range (oC) -10 to +60
