PX2KXREX | Class I, Div 1 & 2 | AEx d, AEx e, AEx nR, AEx t | Hazardous (Classified) Location Barrier Cable Gland For all types of Braided & Tape Armored Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

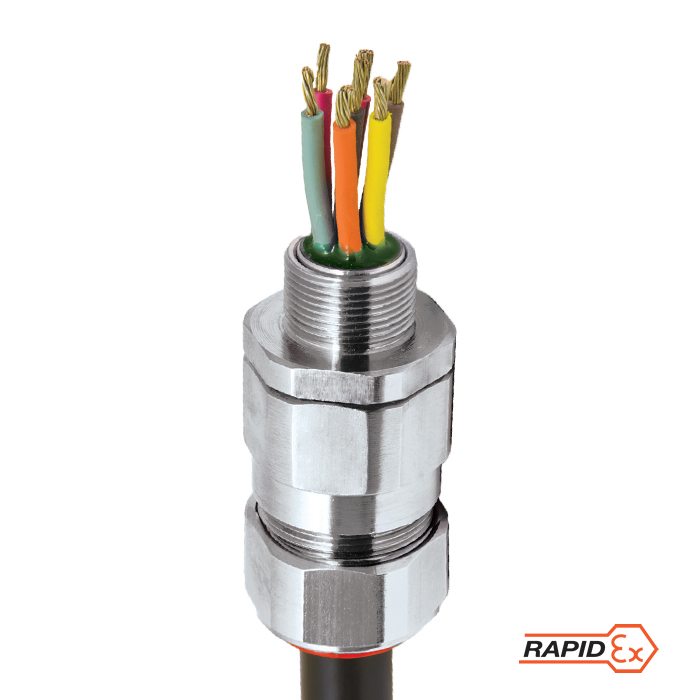

Globally Approved, Hazardous (Classified) Location Barrier Cable Gland

Supplied in Pack with RapidEx Resin

  • RapidEx liquid pour sealing system reduces installation time
  • Metal-to-metal armor clamping
  • Direct and remote installation
  • Integral protected deluge seal
  • Disconnectable, union feature design
  • Controlled outer load retention seal
  • Unique OSTG prevents overtightening
  • -60˚C to +85˚C (-76˚F to +185˚F)
  • Globally marked, cCSAus, IECEx and ATEX
  • Superior EMC performance
  • As standard in nickel plated brass with NPT thread form
  • RapidEx liquid barrier resin seals around internal cable cores after removing any cable inner sheath/ bedding; completely eliminating any risk of coldflow

For under / oversized armor wires click here

Patent granted: ES2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, GB 2485114, SG 178839, US 8872027, US 9484133, US 9774178, MY 153843, US 10193321, US 1034078

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classification* Impact = Level 8, Cable Anchorage = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classification* Category B (Category A when used with braid, tape or pliable wire armor cables)
ATEX Certificate CML 18ATEX1325X, CML 18ATEX4317X
Code of Protection II 2G 1D, Ex db IIC, Ex eb IIC Gb, Ex ta IIIC Da II 3G, Ex nR IIC Gc I M2 Ex db I Mb*, Ex eb I Mb*
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0182X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb*, Ex eb I Mb*
Compliance Standards IEC 60079-0,1,7,15,31
Note: Per ATEX CML 18ATEX1325X and IECEx CML 18.0182X, aluminium alloys are not permitted in Group I mining applications.
cCSAus Certificate (20s16 - 100) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-60079-0,1,7,31 CAN/CSA-E6124111 Part 11, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079
ECAS Certificate 20-02-05624
UkrSEPRO CЦ 19.0371X
EAC Certificate TC RU C-GB.AA87.B.00487
Code of Protection 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66, IP67, IP68
RETIE Approval Number 03866
CCOE / PESO (India) Certificate P444949
NEPSI Certificate GYJ18.1252X
INMETRO Approval TÜV 12.2073X
Marine Approvals LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68****
Deluge Protection Compliance DTS01 : 91
NEMA Rating** Type 4X
Cable Gland Material Electroless Nickel Plated Brass, Copper Free (<0.4%) Aluminium, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Resin Barrier
Cable Type Braid Armored Shipboard cable and all IEC Braid Cables***
Armor Clamping Detachable Resin Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP Outer Seal (Load Retention Seal)
Sealing Area(s) Inner RapidEx Barrier Seal & Outer Sheath
Note: * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
**When CMP installation accessories are used. Refer to maintaining a seal for further information
*** Where cable is permitted by code (NEC and/or CEC)
****IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference
(*Nickel Plated Brass NPT)		Available Entry Threads 'C'
(Alternative Metric Thread Lengths Available)		Number of CoresDiameter Over Conductors
'A'		Cable Bedding Diameter 'G'Overall Cable Diameter 'B'Armor Range †
Grooved Range (X)		Across Flats 'D'Across Corners 'D'Protrusion Length 'F'ShroudApprox Weight Aluminum (oz)
SizeTypeOrdering SuffixNPTNPT
(Option)		Metric
(Option)		Thread Length (NPT) 'E'MaxMaxMinMaxMinMaxMaxMax
20S16PX2KXREX1EX531½"¾"M200.78210.460.460.240.520.010.041.201.322.44PVC068.47
20SPX2KXREX1EX531½"¾"M200.78210.460.460.370.630.010.041.201.322.44PVC068.11
20PX2KXREX1EX531½"¾"M200.78210.500.510.490.820.020.041.201.322.48PVC068.47
25SPX2KXREX1EX532¾"1"M250.80300.690.700.550.870.020.051.481.622.74PVC0913.05
25PX2KXREX1EX532¾"1"M250.80300.690.700.721.030.020.051.481.622.74PVC0913.05
32PX2KXREX1EX5331"1 ¼"M320.98500.930.940.931.340.020.051.811.992.95PVC1120.11
40PX2KXREX1EX5341 ¼"1 ½"M401.01591.181.191.101.590.020.062.172.382.95PVC1528.22
50SPX2KXREX1EX5351 ½"2"M501.03891.441.451.391.840.020.062.362.603.03PVC1831.75
50PX2KXREX1EX5362"2 ½"M501.061151.611.631.592.090.020.062.763.043.03PVC2141.98
63SPX2KXREX1EX5362"2 ½"M631.061151.891.881.802.340.020.062.953.253.14PVC2349.03
63PX2KXREX1EX5372 ½"3"M631.571152.112.132.152.590.020.063.153.463.16PVC2549.74
75SPX2KXREX1EX5372 ½"3"M751.571402.362.372.322.840.020.063.543.903.42PVC2873.72
75PX2KXREX1EX5383"3 ½"M751.631402.532.532.633.090.020.063.944.333.48PVC3089.60
90PX2KXREX1EX5393 ½"4"M901.691402.972.983.003.560.030.064.504.954.02PVC32130.87
100PX2KXREX1EX5393 ½"4"M1001.692003.293.383.393.990.030.065.245.764.49LSF33169.67
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1”
For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32PX2KXREX1EX534 = Nickel Plated Brass 1 ¼” NPT, 25PX2KXREX1EX432 = Stainless Steel ¾” NPT, 20PX2KXREX1EX5 Nickel Plated Brass M20
Dimensions displayed in inches otherwise stated
† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA),
Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W). Grooved Cone (X) dimensions shown in the Cable Gland Selection Table
are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the
table.
