A2F | Ex eb, Ex db, Ex nR, Ex ta | Hazardous Location Cable Gland For all types of Unarmored & Braided Armor Cables

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

Globally Approved, Hazardous (Classified) Location Cable Gland

  • Aluminum, nickel plated brass or stainless steel
  • Optional thread sizes
  • Displacement type flameproof seal
  • Deluge protected
  • -60˚C to +130˚C (-76˚F to +266˚F)
  • Globally marked, CSA, IECEx and ATEX
  • As standard in nickel plated brass with NPT thread form
Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classification* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate CML 18ATEX1321X, CML 18ATEX4313X
Code of Protection II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0179X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,15,31
CSA Certificate 1211841
Code of Protection Ex d IIC, Ex e II, Ex nR II; Encl. Type 4x
Compliance Standards C22.2 No 0,0.4,94,174, CAN/CSA-60079-0,1,7,15
ECAS Certificate 20-02-05632
UkrSEPRO CЦ 19.0371X
EAC Certificate TC RU C-GB.AA87.B.00487
Code of Protection 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66
KCC Certificate 13_GA4BO_0748X, 13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X
INMETRO Approval TÜV 12.0619X
CCOE / PESO (India) Certificate P444949
RETIE Approval Number 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68***
NEMA Rating** NEMA 4X
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Copper Free (<0.4%) Aluminium, Nickel Plated Brass, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Unarmored & Braided (when terminated inside enclosure)
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Cable Outer Jacket

Note: *Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference (*Nickel Plated Brass NPT)Available Entry Threads 'C'Overall Cable Diameter 'A'Across Flats 'D'Across Corners 'D'Protrusion Length 'F'ShroudCable
Gland Weight (oz)
SizeTypeOrdering SuffixNPTNPT
(Option)		Metric
(Option)		Thread Length (NPT) 'E'MinMaxMaxMaxMax
20S16A2F1RA531½"¾"M200.780.130.340.951.041.04PVC042.30
20SA2F1RA531½"¾"M200.780.240.460.951.041.00PVC042.02
20A2F1RA531½"¾"M200.780.260.551.061.171.06PVC052.04
25A2F1RA532¾"1"M250.800.440.791.421.561.40PVC093.66
32A2F1RA5331"1 ¼"M320.980.671.041.611.781.35PVC104.45
40A2F1RA5341 ¼"1 ½"M401.010.931.271.972.171.37PVC136.64
50SA2F1RA5351 ½"2"M501.031.221.502.172.381.34PVC158.12
50A2F1RA5362"2 ½"M501.061.401.732.562.821.52PVC1815.26
63SA2F1RA5362"2 ½"M631.061.631.972.763.031.42PVC2112.41
63A2F1RA5372 ½"3"M631.571.862.203.153.471.41PVC2325.55
75SA2F1RA5372 ½"3"M751.572.132.443.153.471.46PVC2418.54
75A2F1RA5383"3 ½"M751.632.412.673.944.331.58PVC2444.56
90A2F1RA5393 ½"4"M901.692.623.154.254.682.18PVC3159.90
100A2F1RA5393 ½"4"M1001.692.993.584.855.342.19LSF3352.90
115A2F1RA53104"5"M1151.733.393.855.255.782.57LSF3476.71
130A2F1RA53115"-M1301.843.824.526.006.602.91LSF35138.91
Dimensions are in inches unless otherwise stated

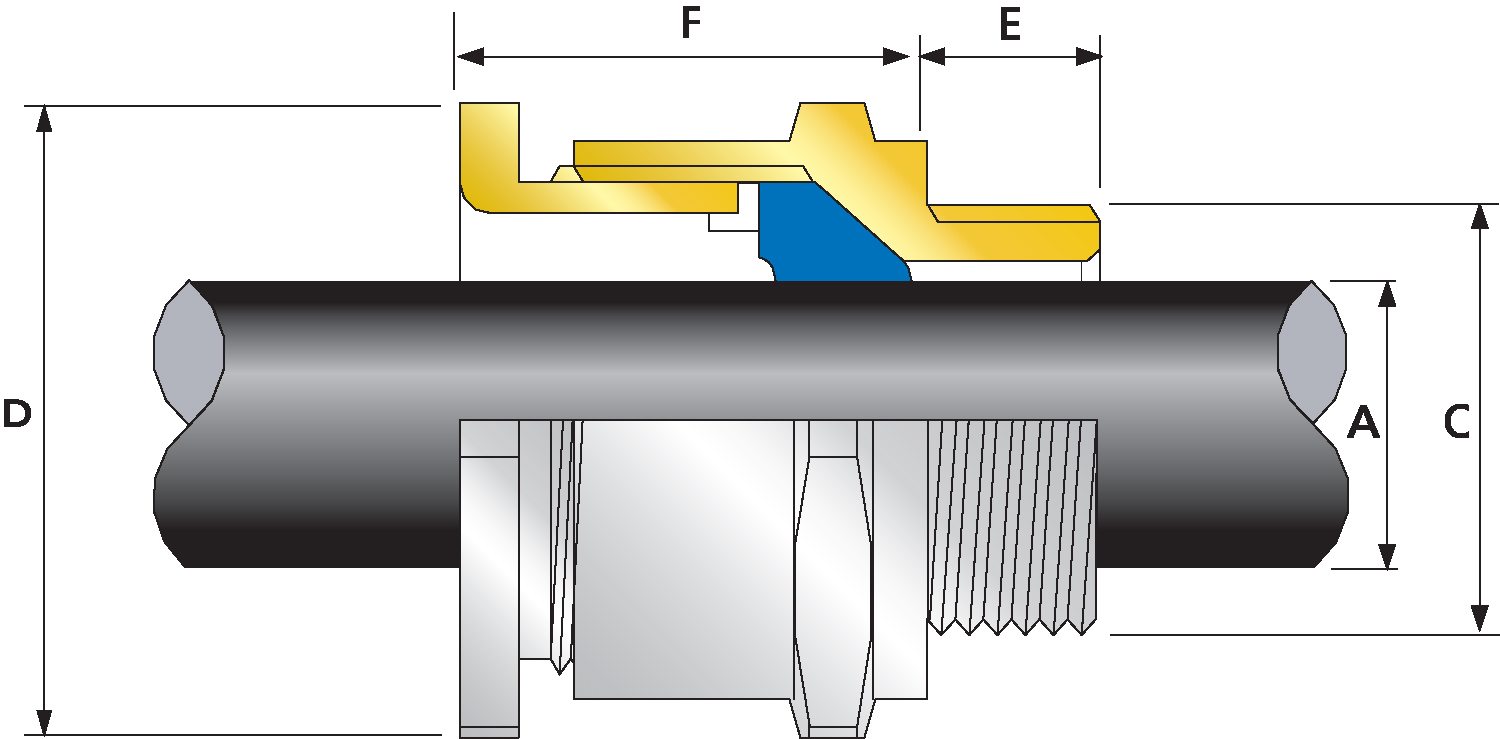

Technical Illustration
