Earth Tags Accessories for cable glands, available in brass, stainless steel, aluminum and nickel plated brass

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

CMP slip on Earth Tags, installed between the Cable Gland and equipment, provide an earth bond connection. Earth Tags have been independently short circuit tested to verify their suitability under specified service conditions. A copy of the test report is available upon request and is an important factor when selecting earth tags from any manufacturer, as without this the safety of installations may be compromised.

Stainless steel, aluminum and nickel plated brass earth tags are available. Please refer to ordering reference numbers, e.g. 20ET4 for M20 Stainless Steel Earth Tag, 050NPTET4 for ½” NPT Stainless Steel Earth Tag.

Ordering references shown in Nickel Plated Brass.

MetricNPTShort Circuit Ratings Symmetrical Fault Current (kA) For 1 Second
20¾”3.06
251"4.06
321¼” 5.40
401 ½” 7.20
502”10.40
632 ½” 10.40
753”10.40

No Data Entered

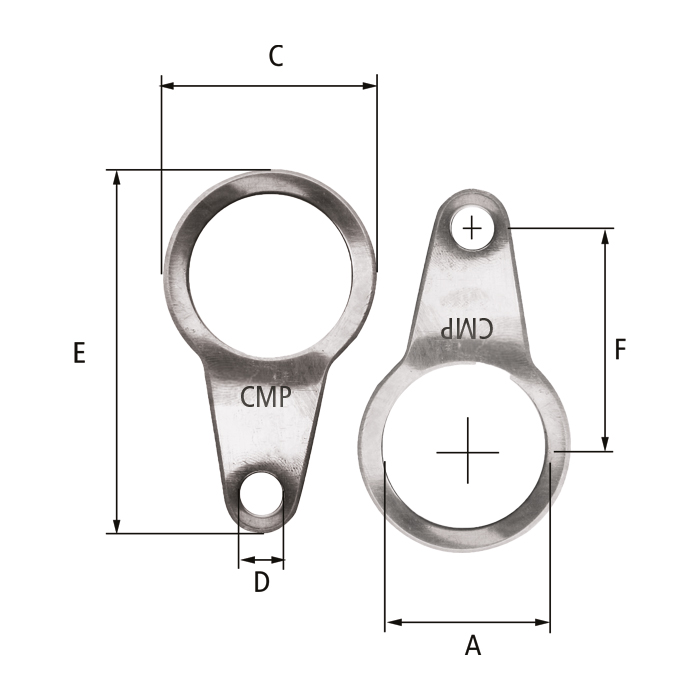

Ordering Reference (NPT)Reference Diameter 'A'Minimum ThicknessNominal Diameter 'C'Hole Size 'D'Nominal Length 'E'Nominal Centres 'F'
050NPTET½” NPT0.051.07M62.081.30
075NPTET¾” NPT0.061.38M62.331.40
100NPTET1" NPT0.061.78M123.031.70
125NPTET1¼” NPT0.062.11M133.491.79
150NPTET1 ½” NPT0.062.57M134.382.29
200NPTET2" NPT0.063.25M135.072.63
250NPTET2 ½” NPT
0.063.76M135.572.87
300NPTET3" NPT0.084.49M136.343.35
350NPTET3 ½” NPT0.084.92M137.674.06
400NPTET54" NPT-5.53M138.154.64
Dimensions shown are in inches unless otherwise stated
Ordering Reference (Metric) Reference Diameter 'A'Minimum ThicknessNominal Diameter 'C'Hole Size 'D'Nominal Length 'E'Nominal Centres 'F'
16ET5M160.051.00M61.981.19
20ET5M200.051.07M62.061.30
25ET5M250.061.38M62.331.40
32ET5M320.061.78M123.031.70
40ET5M400.062.11M133.491.79
50ET5M500.062.57M134.382.29
63ET5M630.063.25M135.072.63
75ET5M750.063.76M135.572.87
90ET5M900.084.50M136.343.35
100ET5M1000.084.92M137.674.65
All dimensions shown in inches unless otherwise stated
