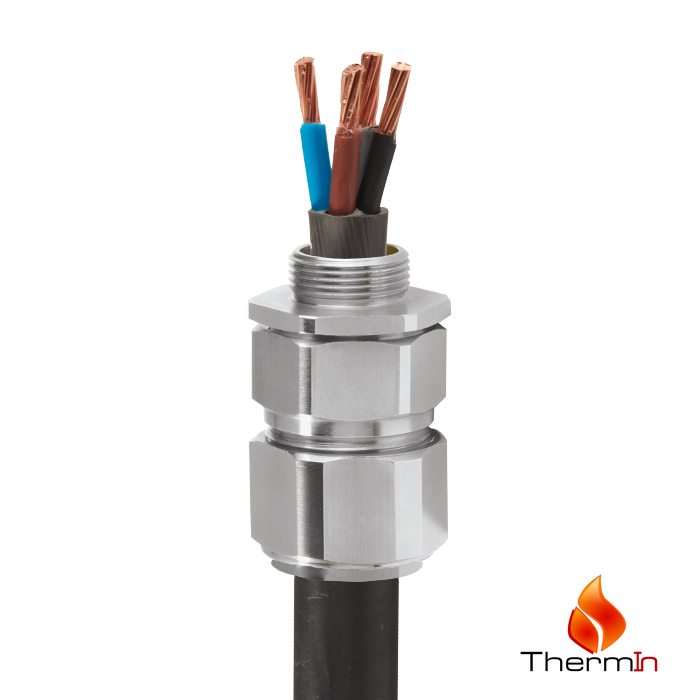

CXHT | Industrial High Temperature Cable Gland For Braid & Steel Tape Armoured Cables

Single Seal Cable Gland

• -20?C to 200?C high temperature ThermIn seals
• High quality durable materials
• Robust, heavy duty design
• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Deluge protection option
• EMC tested

Note: Deluge Proof option available (CXDHT)

† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).

Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications * Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
Continuous Operating Temperature -20°C to +200°C
Ingress Protection Rating ** IP66
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Wire Braid Armour, Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA)
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Cable Outer Sheath
Cable Gland Kits Available Cable Gland kit for use with all types of SWA cable including 2 Brass Cable Glands, 2 Steel Locknuts, 2 Brass Earth Tags and 2 PVC Shrouds for sizes up to and including 32mm. For sizes 40mm and above each kit includes 1 of each component.
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners

Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Certificates

Click hereClick here to view Certificates

Product Selection Table

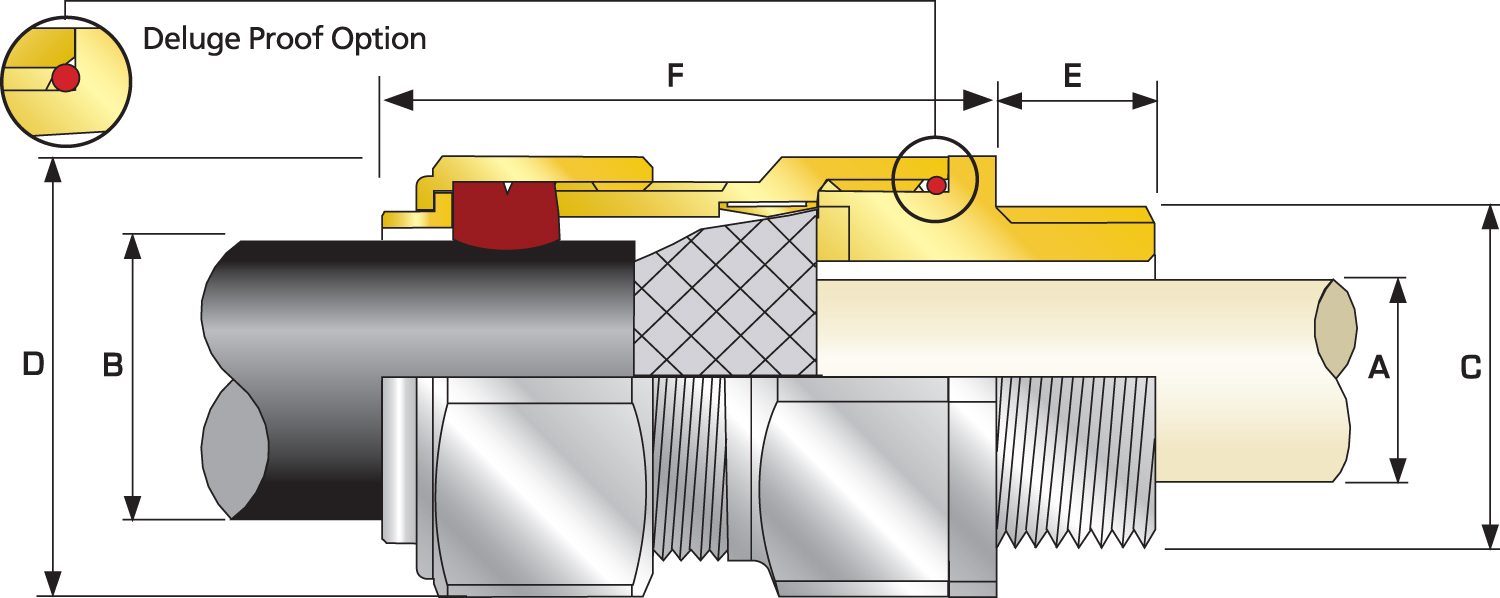

Click here to view Technical Illustration

Technical Illustration

Click here to view how to order

Cable Gland SizeEntry Thread ?"C"? Thread Length
(Metric) ?"E?"
Cable
Bedding
Diameter
"?A?"
Overall
Cable
Diameter
?"B?"
Armour Range †
Grooved Cone (X)
Across
Flats ?"D?"
Across
Corners
?"D"?
Protrusion
Length "?F"?
Combined Ordering Reference
(Brass Metric)
ShroudCable
Gland
Weight
(Ozs)
MaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.3940.3430.2400.5160.0120.0390.9451.0391.89020S16CXHT1RAPVC043.527
20SM200.3940.4610.3740.6260.0120.0390.9451.0391.89020SCXHT1RAPVC043.527
20M200.3940.5510.4920.8230.0160.0391.2011.3231.89020CXHT1RAPVC065.185
25SM250.3940.7870.5510.8660.0160.0471.4761.6262.20525SCXHT1RAPVC097.901
25M250.3940.7870.7171.0310.0160.0471.4761.6262.20525CXHT1RAPVC097.796
32M320.3941.0240.9331.3350.0160.0471.8111.9922.12632CXHT1RAPVC1110.864
40M400.5911.2681.0981.5910.0160.0632.1652.3822.28340CXHT1RAPVC1515.803
50SM500.5911.5041.3861.8390.0160.0632.3622.5982.40250SCXHT1RAPVC1820.000
50M500.5911.7361.5912.0870.0240.0632.7603.0352.36250CXHT1RAPVC2126.491
63SM630.5911.9691.7952.3390.0240.0632.9533.2482.91363SCXHT1RAPVC2336.544
63M630.5912.2052.1502.5910.0240.0633.1503.4652.79563CXHT1RAPVC2535.838
75SM750.5912.4412.3232.8350.0240.0633.5433.8983.38675SCXHT1RAPVC2863.035
75M750.5912.5282.6263.0870.0240.0633.9374.3313.22875CXHT1RAPVC3073.758
90M900.9453.0943.0003.5550.0310.0634.5004.9493.74090CXHT1RAPVC32107.374
100M1000.9453.5833.3903.9920.0310.0634.8435.3273.740100CXHT1RALSF33110.478
115M1150.9453.8583.9964.3390.0310.0635.2525.7764.232115CXHT1RALSF34157.886
130M1300.9454.5284.3394.8500.0310.0636.0006.5984.331130CXHT1RALSF35203.214
Dimensions are displayed in inches unless otherwise stated
Cable Gland SizeEntry Thread ?"C?" Thread Length
(Metric) ?"E?"
Cable
Bedding
Diameter
"?A?"
Overall
Cable
Diameter
?"B?"
Armour Range †
Grooved Cone (X)
Across
Flats "?D?"
Across
Corners
?"D?"
Protrusion
Length ?"F?"
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2010.08.76.113.10.31.024.026.448.020S16CXHT1RAPVC040.100
20SM2010.011.79.515.90.31.024.026.448.020SCXHT1RAPVC040.140
20M2010.01412.520.90.41.030.533.648.020CXHT1RAPVC060.140
25SM2510.020.014.022.00.41.237.541.356.025SCXHT1RAPVC090.224
25M2510.020.018.226.20.41.237.541.356.025CXHT1RAPVC090.221
32M3210.026.023.733.90.41.246.050.654.032CXHT1RAPVC110.308
40M4015.032.227.940.40.41.655.060.558.040CXHT1RAPVC150.448
50SM5015.038.235.246.70.41.660.066.061.050SCXHT1RAPVC180.567
50M5015.044.140.453.00.61.670.177.160.050CXHT1RAPVC210.751
63SM6315.050.045.659.40.61.675.082.574.063SCXHT1RAPVC231.036
63M6315.056.054.665.80.61.680.088.071.063CXHT1RAPVC251.016
75SM7515.062.059.072.00.61.690.099.086.075SCXHT1RAPVC281.787
75M7515.064.266.778.40.61.6100.0110.082.075CXHT1RAPVC302.091
90M9024.078.676.290.30.81.6114.3125.795.090CXHT1RAPVC323.044
100M10024.091.086.1101.40.81.6123.0135.395.0100CXHT1RALSF333.132
115M11524.098.0101.5110.20.81.6133.4146.7107.5115CXHT1RALSF344.476
130M13024.0115110.2123.20.81.6152.4167.6110.0130CXHT1RALSF355.761
Dimensions are displayed in millimetres unless otherwise stated
