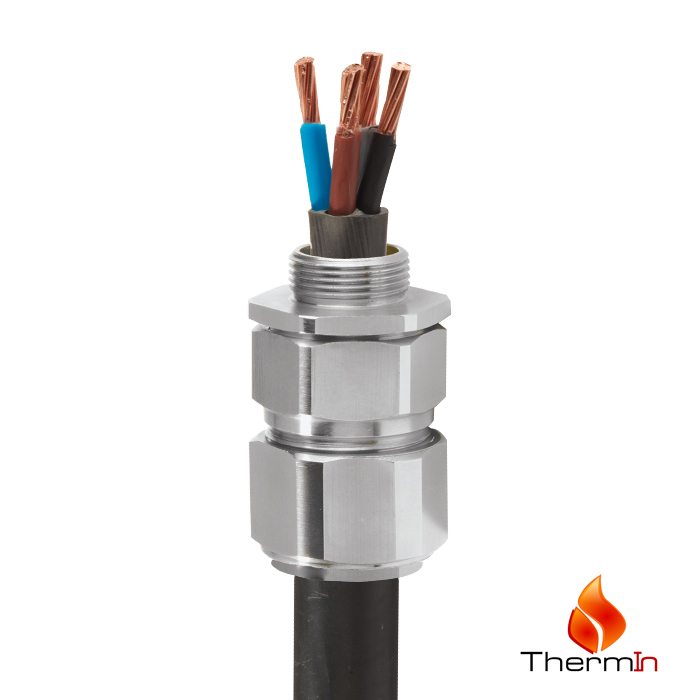

CWHT | Industrial High Temperature Cable GlandFor all types of Steel & Aluminium Wire Armoured cables

Single Seal Industrial Cable Gland

• -20˚C to 200˚C high temperature ThermIn seals
• High quality durable materials
• Robust, heavy duty design
• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Deluge protection option
• EMC tested

Note: Deluge Proof option available (CWDHT)

For under / oversized armour wires click here

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications * Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B
Continuous Operating Temperature -20°C to +200°C
Ingress Protection Rating ** IP66
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP Thermoset Rubber
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Cable Outer Sheath
Cable Gland Kits Available Cable Gland kit for use with all types of SWA cable including 2 Brass Cable Glands, 2
Steel Locknuts, 2 Brass Earth Tags and 2 PVC Shrouds for sizes up to and including 32mm.
For sizes 40mm and above each kit includes 1 of each component.
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool

Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Introducing the Sentinel

Certificates

Click here to view Certificates

Product Selection Table

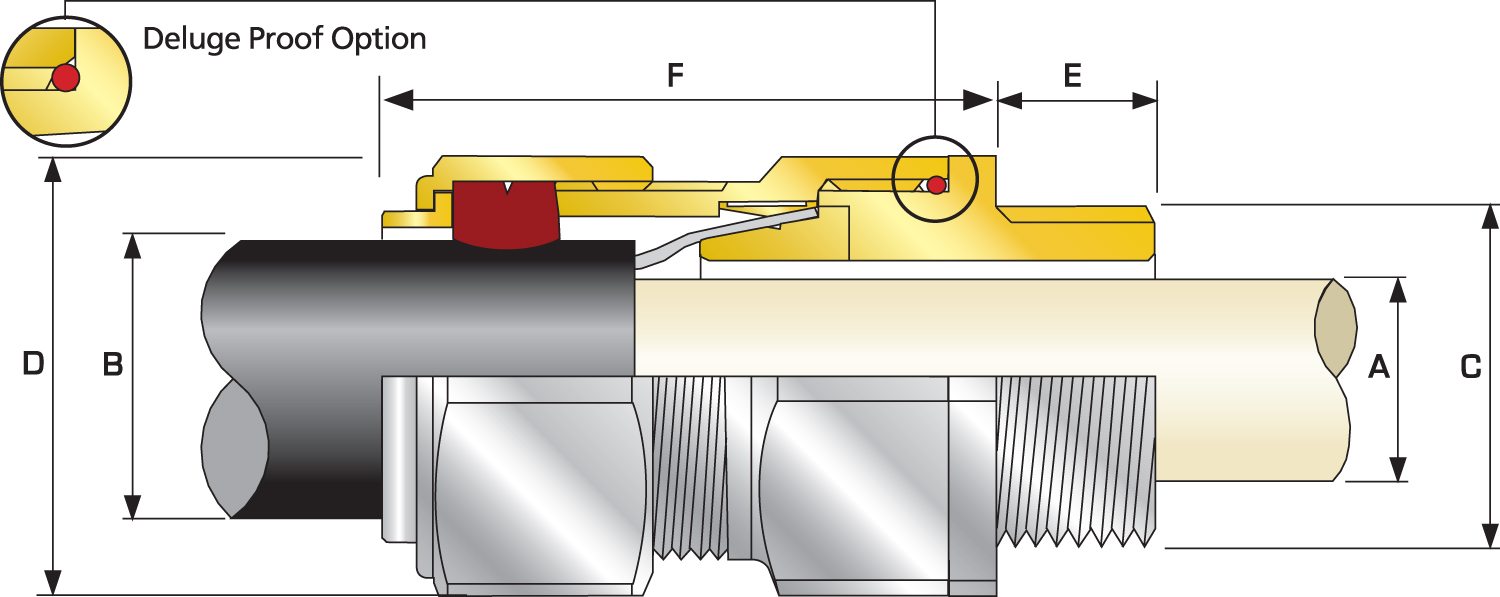

Click here to view Technical Illustration

Technical Illustration

Click here to view how to order

Cable Gland SizeEntry Threads “C”Thread Length (NPT) "E"Cable
Bedding
Diameter
“A”
Overall
Cable
Diameter
“B”
Armour RangeAcross
Flats “D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Ozs)
MaxMaxMaxMaxMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.390.340.240.520.030.050.941.041.8920S16CWHT1RAPVC043.53
20SM200.390.460.370.630.030.050.941.041.8920SCWHT1RAPVC043.53
20M200.390.550.490.820.030.051.201.321.8920CWHT1RAPVC065.19
25SM250.390.790.550.870.050.061.481.632.2025SCWHT1RAPVC097.90
25M250.390.790.721.030.050.061.481.632.2025CWHT1RAPVC097.80
32M320.391.040.931.330.060.081.811.992.1332CWHT1RAPVC1110.79
40M400.591.271.101.590.060.082.172.382.2840CWHT1RAPVC1515.80
50SM500.591.501.391.840.080.102.362.602.4050SCWHT1RAPVC1820.00
50M500.591.741.592.090.080.102.763.042.3650CWHT1RAPVC2126.49
63SM630.591.971.802.340.080.102.953.252.9163SCWHT1RAPVC2336.54
63M630.592.202.152.590.080.103.153.462.8063CWHT1RAPVC2535.84
75SM750.592.442.322.830.080.103.543.903.3975SCWHT1RAPVC2863.03
75M750.592.682.633.090.100.123.944.333.2375CWHT1RAPVC3073.76
90M900.943.153.003.560.120.164.504.953.7490CWHT1RAPVC32107.37
100M1000.943.583.393.990.120.164.845.333.74100CWHT1RALSF33110.48
115M1150.943.864.004.340.120.165.255.784.23115CWHT1RALSF34157.89
130M1300.944.534.344.850.120.166.006.604.33130CWHT1RALSF35203.21
Dimensions displayed in inches unless otherwise stated
Cable Gland SizeEntry Threads “C”Thread Length (NPT) "E"Cable
Bedding
Diameter
“A”
Overall
Cable
Diameter
“B”
Armour RangeAcross
Flats “D”
Across
Corners
“D”
Protrusion
Length “F”
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MaxMaxMaxMaxMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2010.08.76.113.10.81.2524.026.448.020S16CWHT1RAPVC040.10
20SM2010.011.79.515.90.81.2524.026.448.020SCWHT1RAPVC040.10
20M2010.014.012.520.90.81.2530.533.648.020CWHT1RAPVC060.15
25SM2510.020.014.022.01.251.637.541.356.025SCWHT1RAPVC090.22
25M2510.020.018.226.21.251.637.541.356.025CWHT1RAPVC090.22
32M3210.026.323.733.91.62.046.050.654.032CWHT1RAPVC110.31
40M4015.032.227.940.41.62.055.060.558.040CWHT1RAPVC150.45
50SM5015.038.235.246.72.02.560.066.061.050SCWHT1RAPVC180.57
50M5015.044.140.453.02.02.570.177.160.050CWHT1RAPVC210.75
63SM6315.050.045.659.42.02.575.082.574.063SCWHT1RAPVC231.04
63M6315.056.054.665.82.02.580.088.071.063CWHT1RAPVC251.02
75SM7515.062.059.072.02.02.590.099.086.075SCWHT1RAPVC281.79
75M7515.068.066.778.42.53.0100.0110.082.075CWHT1RAPVC302.09
90M9024.080.076.290.33.154.0114.3125.795.090CWHT1RAPVC323.04
100M10024.091.086.1101.43.154.0123.0135.395.0100CWHT1RALSF333.13
115M11524.098.0101.5110.23.154.0133.4146.7107.5115CWHT1RALSF344.48
130M13024.0115.0110.2123.23.154.0152.4167.6110.0130CWHT1RALSF355.76
Dimensions displayed in millimeters unless otherwise stated
